HX80G Excavator | 8T Rubber Tire Wheel Excavator for Sale

HW80G（T4）Wheel Excavator

Operating Weight6.8 Ton

Bucket Capacity0.3 m³

Total engine power55.8 kW/2200 rpm

Catalogue Download

Inquire Now

Category:Wheel Excavator

SPECIFICATIONS

FEATURES

Product Detail

SPECIFICATIONS

GENERAL
	HW80GM	HW80GH
Operating Weight	6800 kg	6800 kg
Bucket Capacity	0.3 m³	0.3 m³
ENGINE
Engine Brand	YUCHAI
Engine Model	YCF3075-T480	YCF3075-T480
Emission	Tier4	Tier4
Rated Power	55.8/2200 kW/rpm	55.8/2200 kW/rpm
HYDRAULIC
Main Pumps Rated Flow	150 l/min	150 l/min
PERFORMANCE
Swing Speed	10.5 rpm	10.5 rpm
Travel Speed	30 km/hr	35 km/hr
Max. Traction Force	52 kN	45 kN
Bucket Digging Force (ISO)	35 kN	35 kN
WORKING RANGE
Boom Length	3400 mm	3400 mm
Arm Length	1900 mm	1900 mm

FEATURES

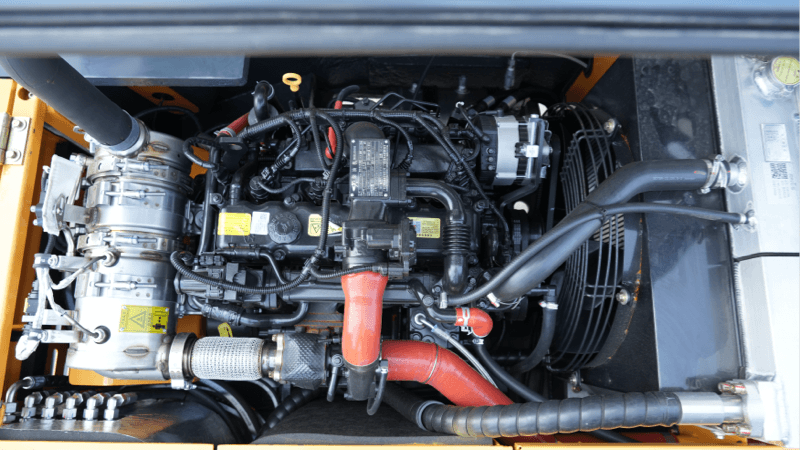

A leader in domestic engines; guaranteed Yuchai engine quality
Compared to engines of the same tonnage in the industry, it offers higher power and robust performance, ensuring vigorous operation and high efficiency. It meets China IV emission standards, features an after-treatment system (EGR/DOC/DPF) with high market penetration, and entails low maintenance costs.

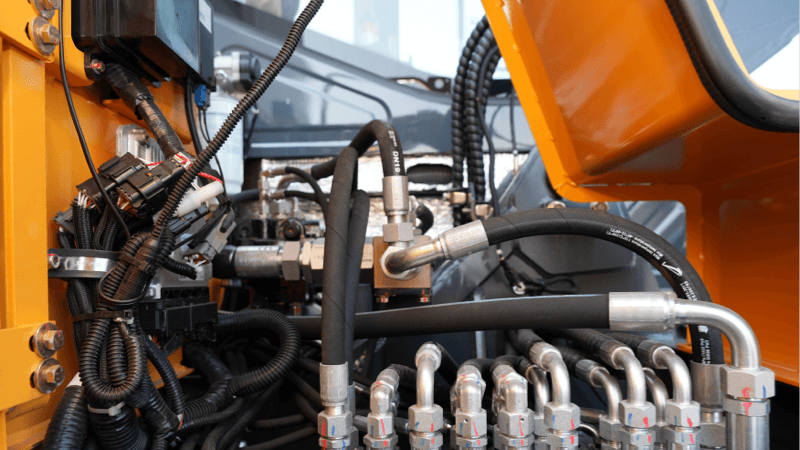

Load-Sensing (LS) System
The load-sensing system supplies oil on demand, ensuring precision during leveling operations. It maintains operational stability when using various attachments, achieving perfect compatibility across different tools.

Renowned brand axles and transmissions; low failure rate
The axles and transmissions have been proven in the market for over a decade, ensuring excellent travel speeds while keeping spare parts and maintenance costs low.

HW80G: Low fuel consumption and high efficiency

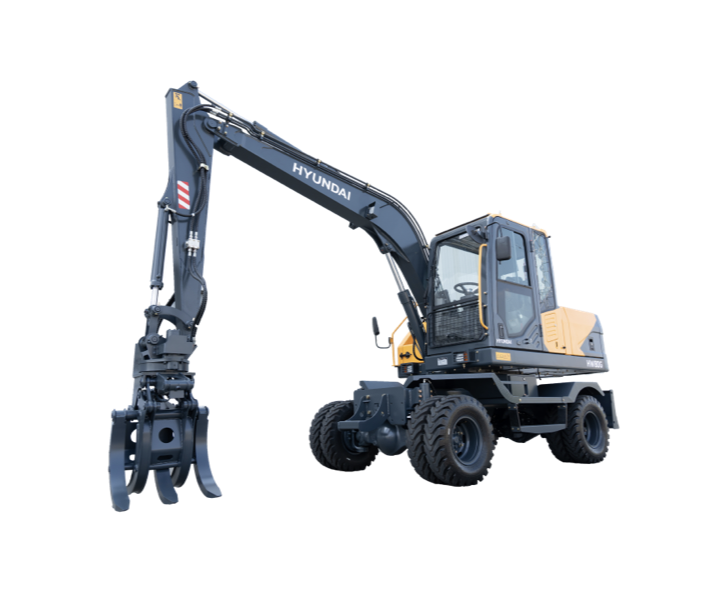

The HW80GM (mechanical model) comes standard with hydraulic lines for breakers and grapples, facilitating the installation of various attachments and meeting the requirements for forestry operations; extended arms and grapples are available as options.The HW80GH (hydraulic model) comes standard with hydraulic lines for breakers. It offers a maximum travel speed of 35 km/h.

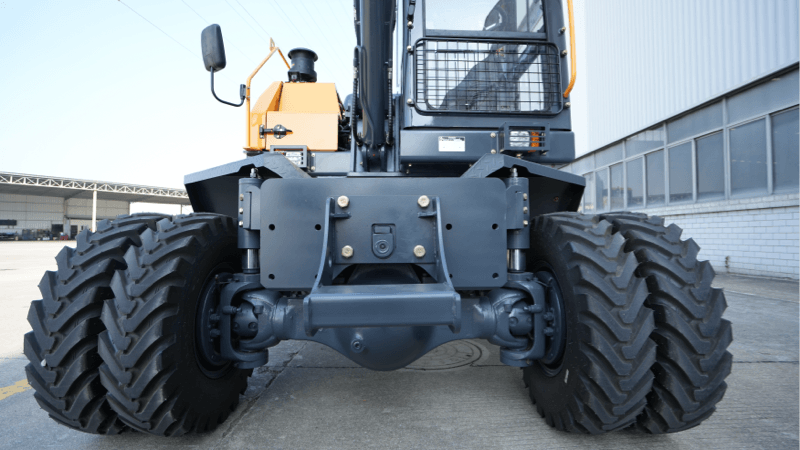

Wider undercarriage; ideal for slope and forestry operations
Features a dual-tire design and a wider undercarriage, providing superior stability when working on slopes.

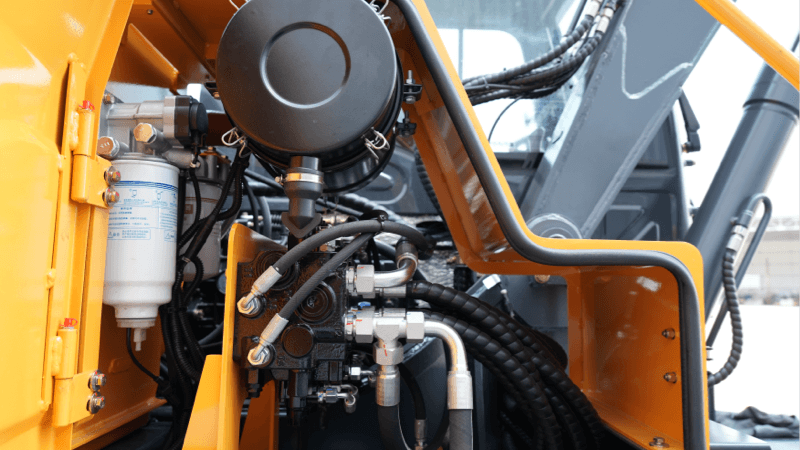

Convenient maintenance
The main control valve and air filter are located on the right side of the cab, making daily maintenance convenient.
