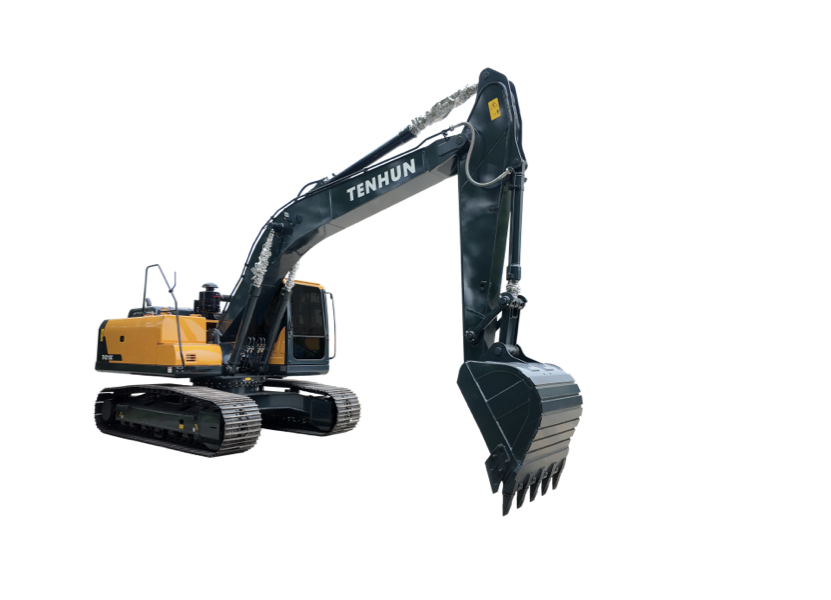

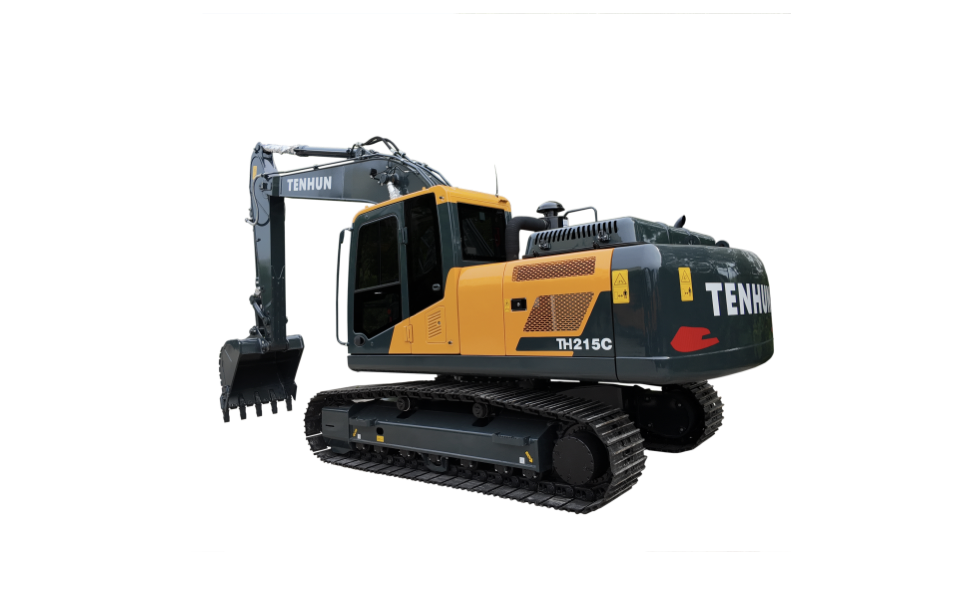

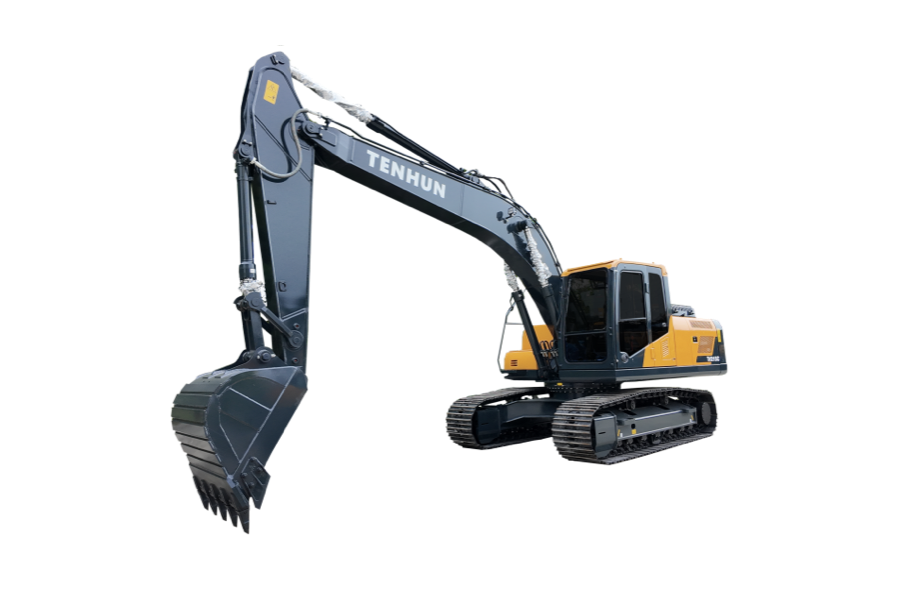

Hyundai TH215C (T2) Crawler Excavator for Sale

TH215C (T2) Crawler Excavator

Operating Weight21.2 ton

Capacity1.0 m³

Rated Power112 kW/1950 rpm

Catalogue Download

Inquire Now

Category:Crawler Excavator

SPECIFICATIONS

FEATURES

Product Detail

SPECIFICATIONS

GENERAL

Operating Weight	21.2 ton
Bucket Capacity	1.0 m³

ENGINE

Emission	T2
Engine Model	6B5.9-C150
Rated Power	112 kW/1950 rpm
Max. Torque	614 NM/1500 rpm

HYDRAULIC

Main Pumps Rated Flow	2×224 l/min
Implement Circuit (Power Boost)	350 kgf/cm²

PERFORMANCE

Swing Speed	12.0 rpm
Travel Speed	5.5 km/3.6 hr
Max. Gradeability	35 deg
Max. Traction Force	194 ton
Bucket Digging Force (ISO)	150 ton
Arm Digging Force (ISO)	100 ton

TANK CAPACITY

Fuel Tank	440 ℓ
Hydraulic Tank	225 ℓ

DIMENSIONS

Overall Length	9600 mm
Overall Height	3045 mm
Overall Width	2800 mm
Tail Swing Radius	2900 mm
Ground Clearance	470 mm

WORKING RANGE

Boom Length	5680 mm
Arm Length	2900 mm
Max. Digging Reach	9900 mm
Max.Digging Depth	6668 mm
Max. Digging Height	9639 mm
Max. Dumping Height	6775 mm
Min. Swing Radius	3530 mm

FEATURES

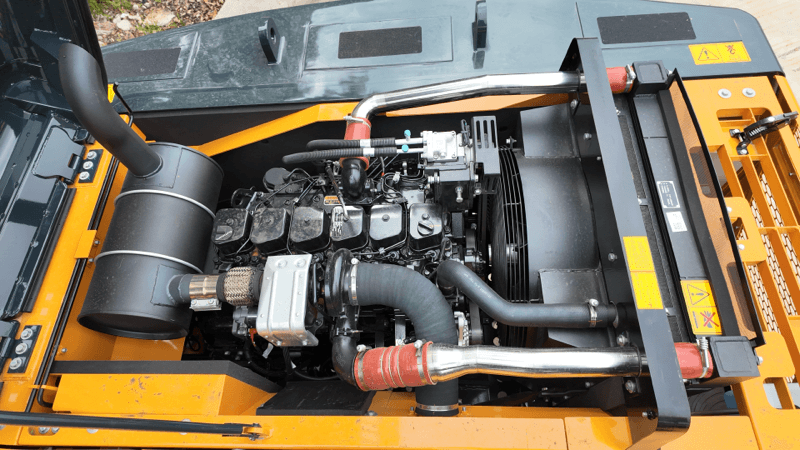

Cummins 6B5.9 Engine
6-cylinder、4-stroke, turbocharged intercooled engine with load resistance,high-horsepower output, high reliability, low fuel consumption, significantly reducing the use and maintenance costs. The application of a large-capacity turbocharger and a high-pressure fuel injection pump reduces fuel consumption and increases power reserve.

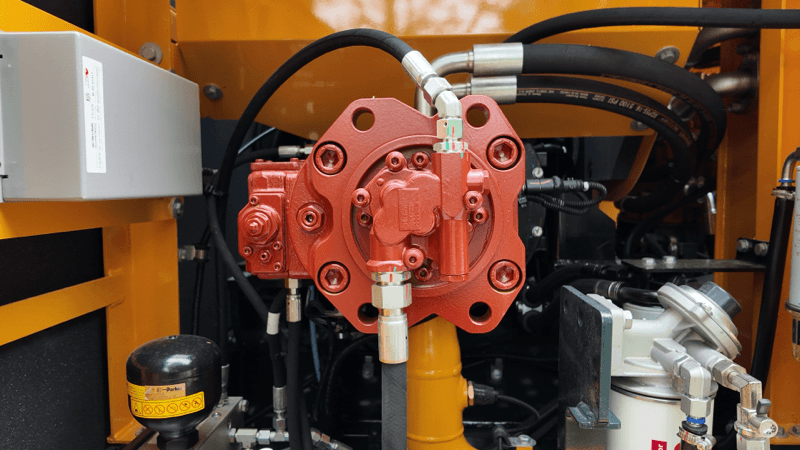

Kawasaki Main Pump
Quality assurance, more excellent performance, large flow rate of 2*224L/min, energy saving and low consumption,fast operation speed.

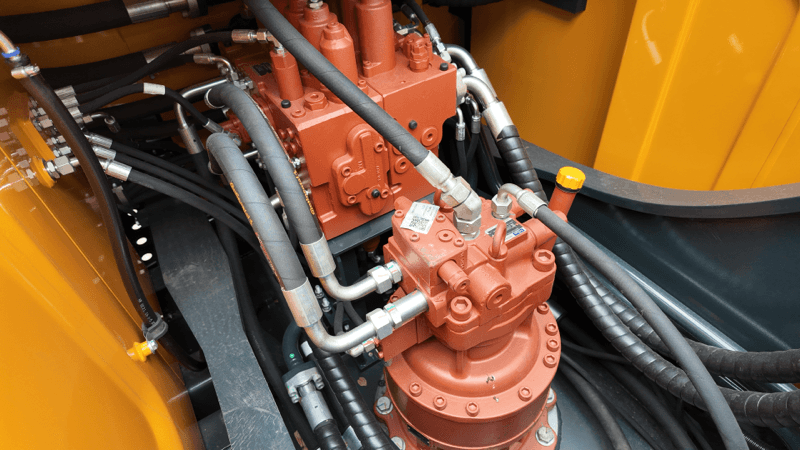

Hengli Slewing Motor
Better adaptability, improved efficiency, increased durability and higher operational efficiency.Tested and fully proven performance.

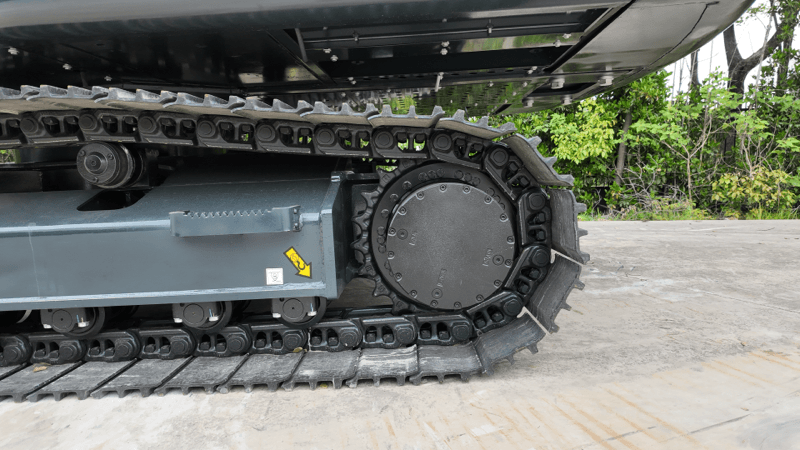

Doosan Travelling Motor
Stable travelling, faster compound movements,better reliability.

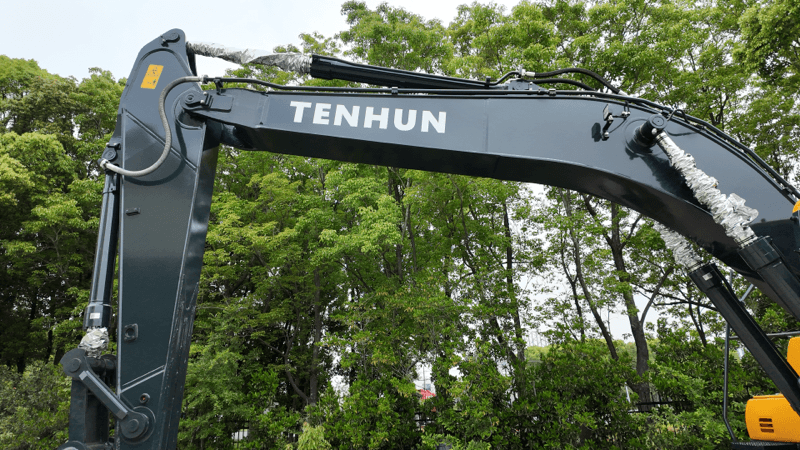

Heavy Duty Working Device
Improved durability and life of the upperstructure and working device. Bushing with improved flexibility, durability and wear resistance. 5.68 m boom, 2.9 m standard arm, greatly improving loading efficiency.

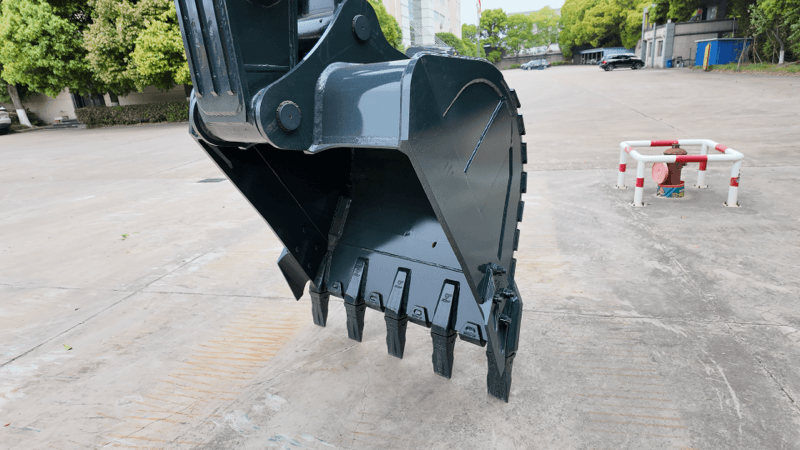

Reinforced Bucket and Linkage
1.0 m3, specially designed for earth moving operations. Loading and unloading materials without sticking, convenient and efficient. Sealed bucket connecting rods ensure low wear on pins and bushings for quiet operation.Improving the reliability and wear characteristics of the connecting rod.
