SPECIFICATIONS
FEATURES
SPECIFICATIONS
| Operating Weight | 97500 kg |
|---|---|
| Bucket Capacity | 5.4-7.2 m³ |
| Brand | Perkins |
|---|---|
| Engine Model | 2806D |
| Emission | Tier4 |
| Rated Power | 570.5/2100 kW/rpm |
| Max. Torque | 3496/1400 Nm/rpm |
| Main Pumps Rated Flow | 3×523 l/min |
|---|
| Swing Speed | 6.1 rpm |
|---|---|
| Travel Speed | 4.5/2.8 km/hr |
| Max. Gradeability | 35° deg |
| Max. Traction Force | 78700 kgf |
| Fuel Tank | 1100 ℓ |
|---|---|
| Hydraulic Tank | 880 ℓ |
| Overall Length | 13800 mm |
|---|---|
| Overall Height | 5090 mm |
| Tail Swing Radius | 4565 mm |
| Overall Width | 3820/4200 mm |
| Min. Ground Clearance | 860 mm |
| Boom Length | 7250 mm |
|---|---|
| Arm Length | 2900 mm |
| Max. Digging Reach | 12430 mm |
| Max. Digging Depth | 7260 mm |
| Max. Digging Height | 12425 mm |
| Max. Dumping Height | 8100 mm |
| Min. Swing Radius | 5345 mm |
FEATURES

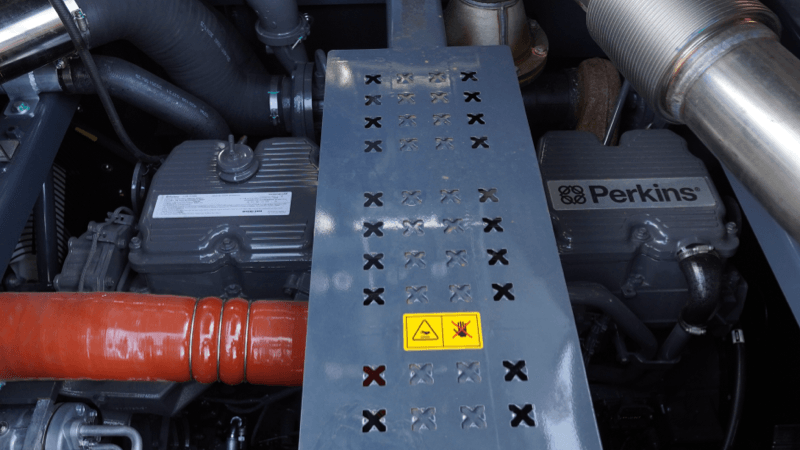

Powerful Performance
The HX1000 is equipped with the latest generation Perkins engine, featuring parallel twin turbochargers that deliver superior power response. With a high-performance independent cooling system, high-output dual starter motors, and high-capacity low-temperature batteries, it delivers robust power even in harsh environments. It also utilizes high-altitude adaptive technology to meet the demands of operations at high elevations.

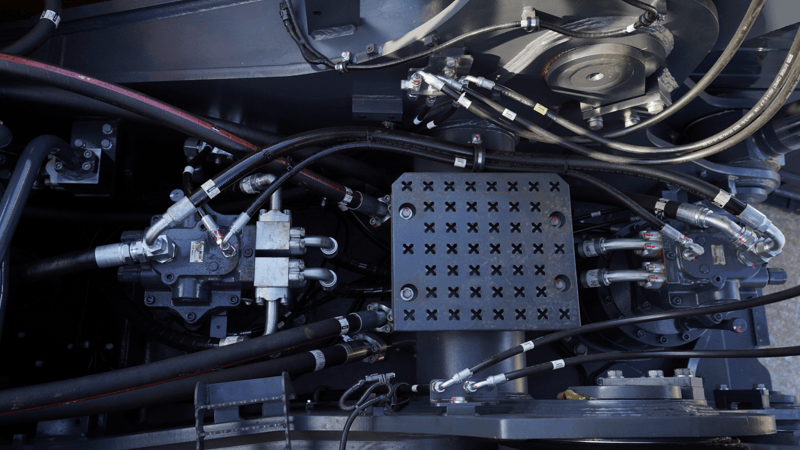

Proven Core Components
All core components are sourced from industry-leading brands, representing the pinnacle of industry standards and ensuring top-tier performance and durability.

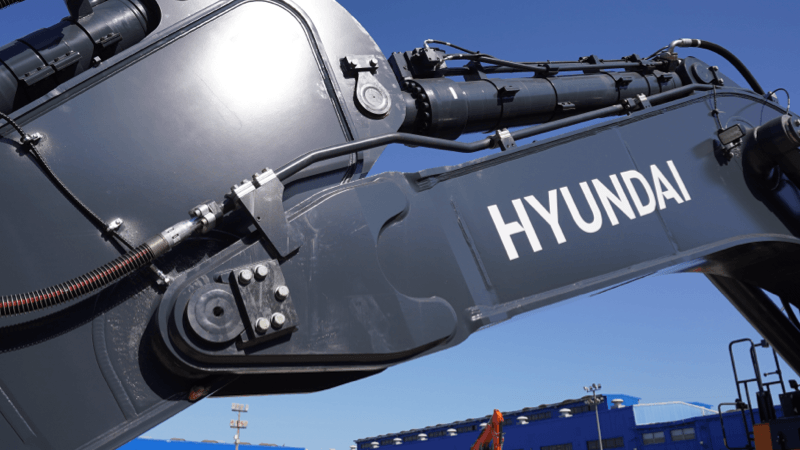

Heavy-Duty Work Equipment
The heavy-duty boom and arm are specifically engineered for the most demanding applications—such as quarrying and large-scale excavation—significantly enhancing the machine's overall durability.

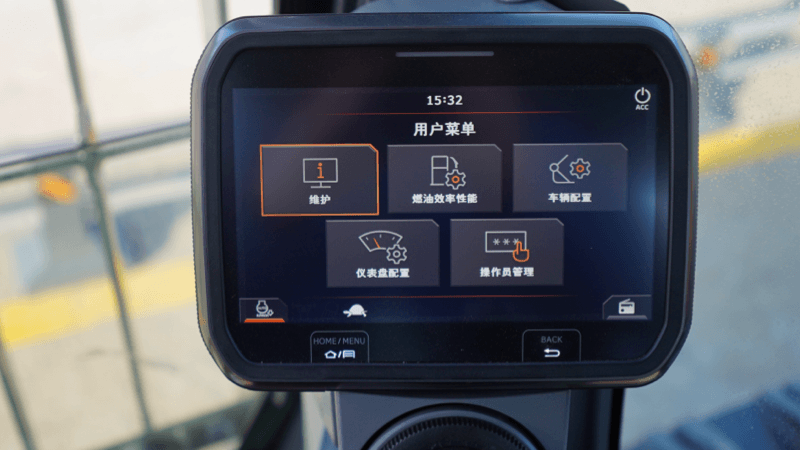

Modern Smart Touchscreen
A spacious 8-inch touchscreen allows for easy navigation through various menus, including power mode and auxiliary hydraulic settings. It also supports Bluetooth connectivity and radio playback.

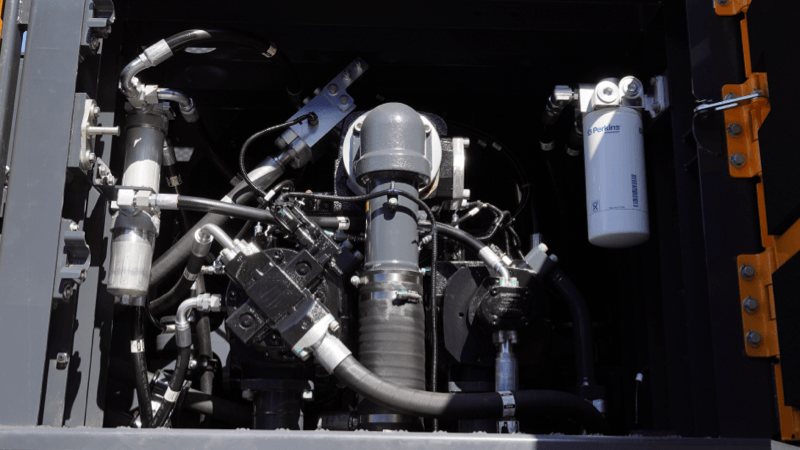

Centralized Fuel Filtration System
The water separator, pre-filter, and main fuel filter are integrated into a centralized layout, simplifying inspection and maintenance.

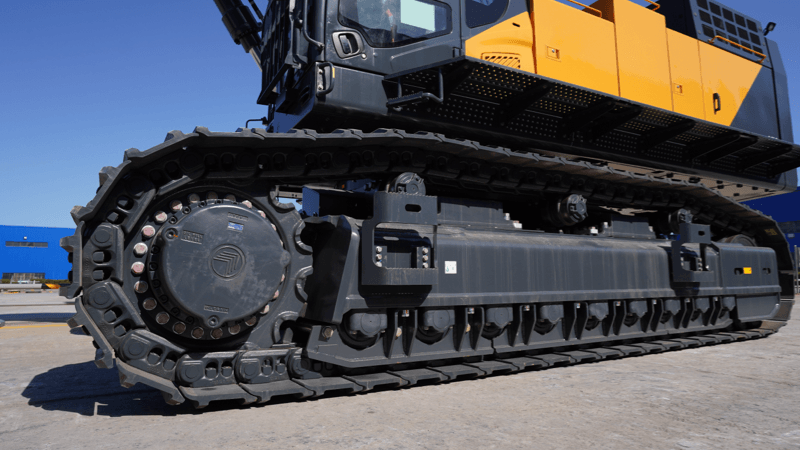

Durable Undercarriage
A heavy-duty extendable undercarriage, robust bottom guards, and reinforced sprockets further enhance the machine's durability.
