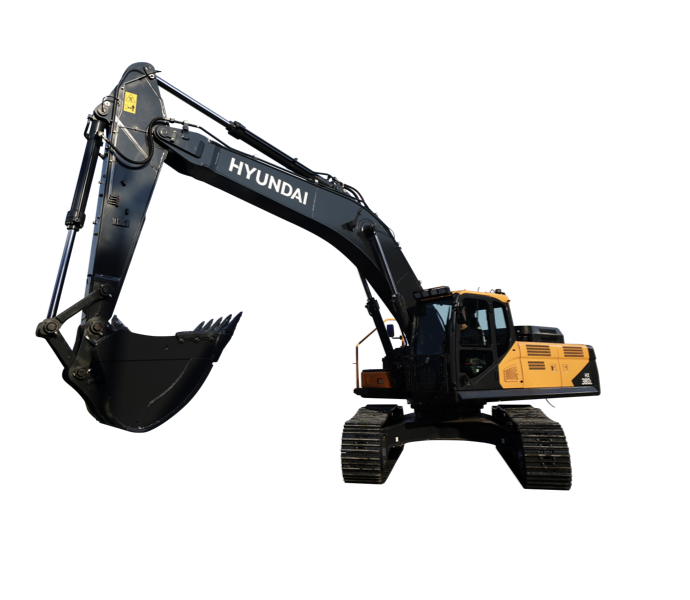

Hyundai HX380VL (T4) Crawler Excavator | 38T HX405L Large Excavator

HX380VL(T4) Crawler Excavator

Operating Weight36.4 Ton

Bucket Capacity1.95 m³

Rated Power214 kW/1800 rpm

Catalogue Download

Inquire Now

Category:Crawler Excavator

SPECIFICATIONS

FEATURES

Product Detail

SPECIFICATIONS

GENERAL

Operating Weight	36400 kg
Bucket Capacity	1.95 m³

ENGINE

Manufacturer	Scania
Engine Model	DC09
Emission	Tier4
Rated Power	214/1800 kW/rpm

HYDRAULIC TANK

Main pumps rated flow	2×350 l/min

PERFORMANCE

Swing Speed	9.2 rpm
Travel Speed	5.4/3.3 km/hr
Bucket Digging Force (ISO)	24.4 ton
Arm Digging Force (ISO)	20.5 ton

TANK CAPACITY

Fuel Tank	581 ℓ
Hydraulic Tank	385 ℓ

DIMENSIONS

Overall Length	11296 mm
Overall Height	3490 mm
Tail Swing Radius	3530 mm
Overall Width	3280 mm
Min. Ground Clearance	475 mm

WORKING RANGE

Boom Length	6500 mm
Arm Length	2900 mm
Max. Digging Reach	11035 mm
Max. Digging Depth	7292 mm
Max. Digging Height	10396 mm
Max. Dumping Height	7431 mm
Min. Swing Radius	4373 mm

FEATURES

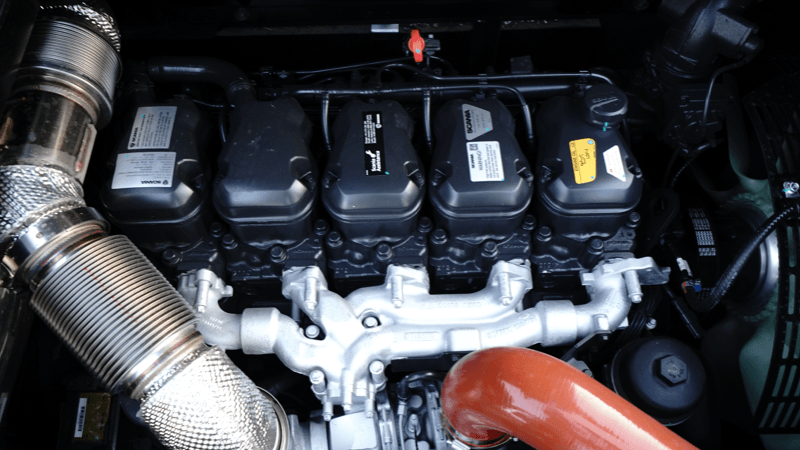

Scania DC09 Engine (214 kW)
Designed for superior performance and fuel efficiency, the Scania engine is reliable and durable. It ensures sustained, powerful output even under the harshest operating conditions. Its low fuel consumption and reduced risk of downtime significantly lower operating costs over the equipment's entire lifecycle.

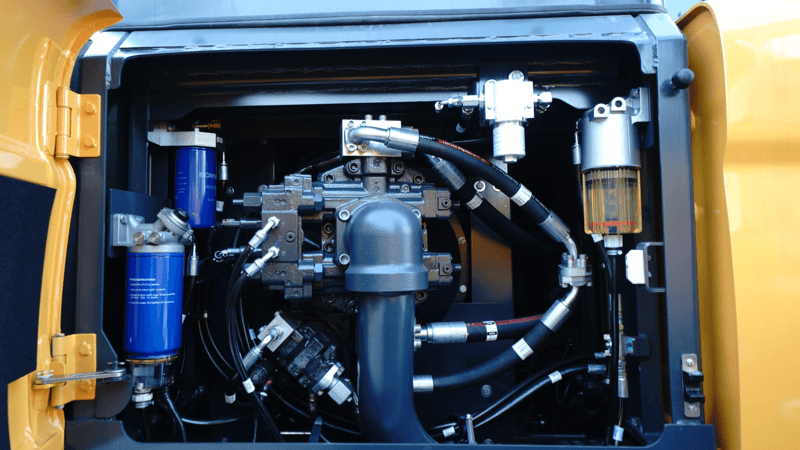

Imported Rexroth High-Displacement Electronically Controlled Main Pump
The German-made Rexroth electronically controlled main pump is market-proven; it utilizes electronic signals for flow control, ensuring sensitive and rapid response. Higher hydraulic flow rates guarantee faster operational speeds.

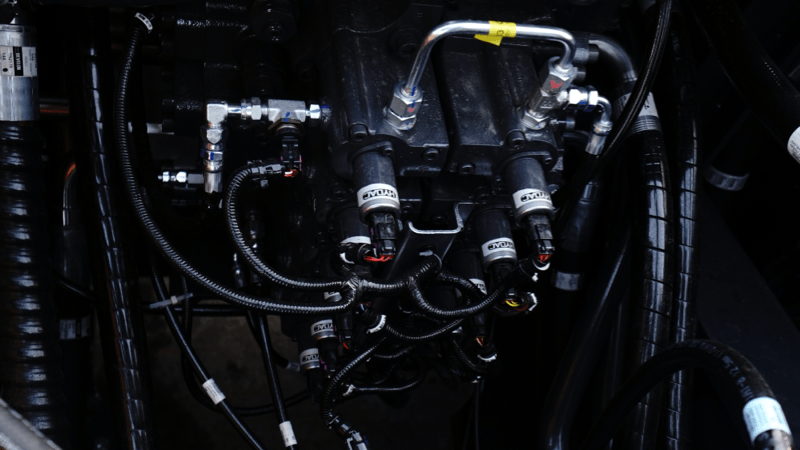

Industry-Leading Core Components
Key components—including the main control valve, swing motor, and travel motors—are sourced from top-tier brands, ensuring proven reliability and quality.

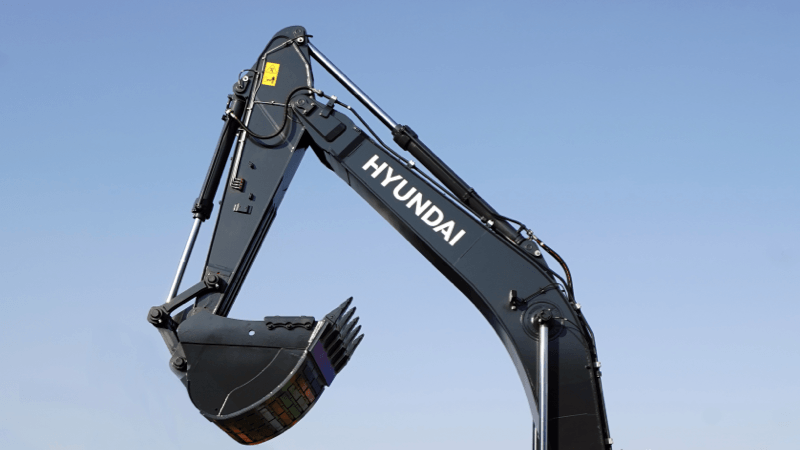

Reinforced Work Equipment
Critical areas feature increased plate thickness and advanced manufacturing processes for enhanced reliability and durability. Standard configuration includes a 6.5m boom and a 2.9m arm, providing an extensive working range.

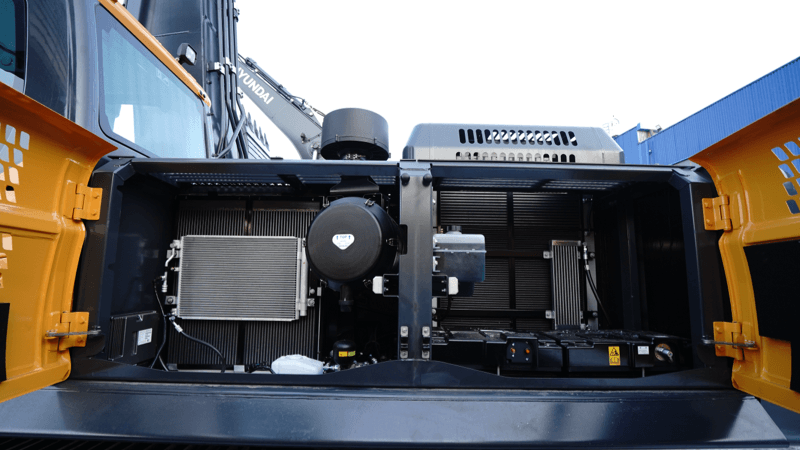

Enhanced Cooling Performance
Independent radiators for coolant and hydraulic oil improve overall cooling efficiency.

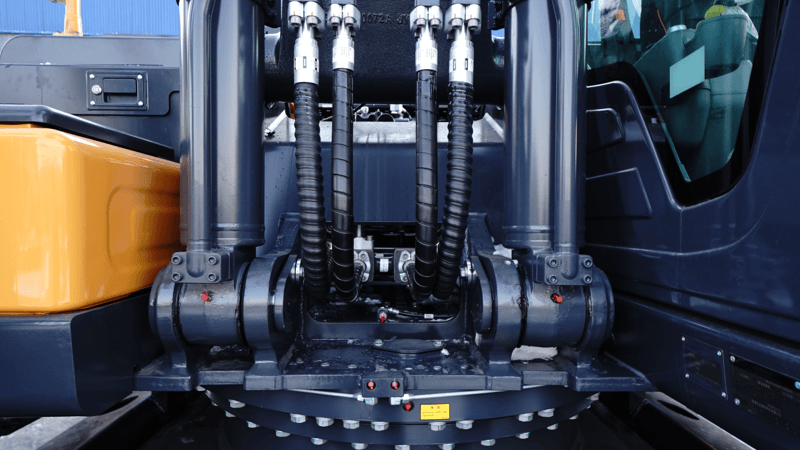

Reinforced Boom Base
The boom base utilizes high-strength cast steel, while the cylinder mounts feature a reinforced, thickened design.
