SPECIFICATIONS
| Operating Weight | 50500 kg |
|---|---|
| Bucket Capacity | 3.2 m³ |
| Manufacturer | Scania |
|---|---|
| Engine Model | DC13 |
| Emission | Tier4 |
| Rated Power | 294/1800 kW/rpm |
| Main Pumps Rated Flow | 2×390 l/min |
|---|
| Swing Speed | 9.2 rpm |
|---|---|
| Travel Speed | 5.3/3.1 km/hr |
| Bucket Digging Force (ISO) | 25.7/24.4 ton |
| Arm Digging Force (ISO) | 23.5/24.9 ton |
| Fuel Tank | 581 ℓ |
|---|---|
| Hydraulic Tank | 385 ℓ |
| Overall Length | 11530 mm |
|---|---|
| Overall Height | 4140 mm |
| Overall Width (Extended) | 3490 mm |
| Overall Width (Retracted) | 2990 mm |
| Min. Ground Clearance | 725 mm |
| Boom Length | 6300 mm |
|---|---|
| Arm Length | 2900 mm |
| Max. Digging Reach | 11069 mm |
| Max. Digging Depth | 6991 mm |
| Max. Digging Height | 9926 mm |
| Max. Dumping Height | 6532 mm |
| Min. Swing Radius | 4715 mm |
FEATURES

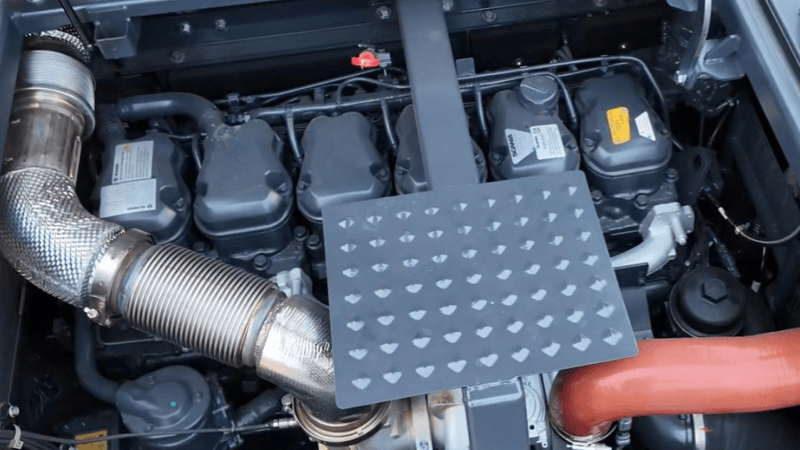

Scania DC13 Engine, 294kW
The Scania engine is designed to deliver superior performance and fuel efficiency, ensuring reliability and durability. It guarantees continuous and powerful output even under the harshest conditions, while significantly reducing downtime and fuel consumption, greatly lowering operating costs throughout the equipment's lifespan.

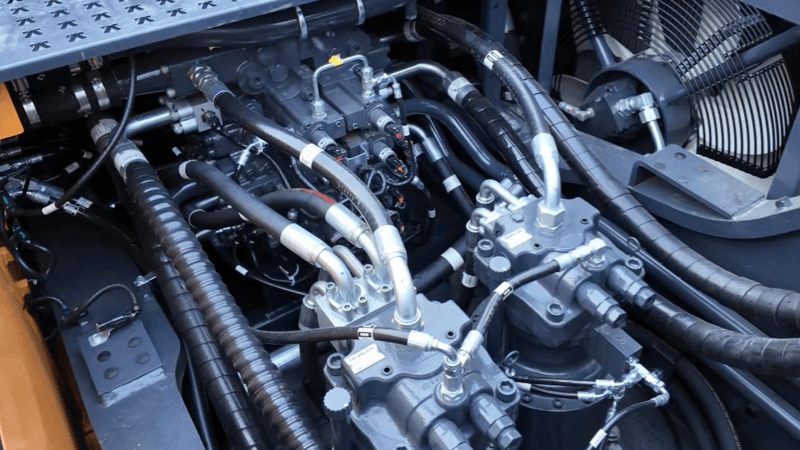

Imported Rexroth Large-Displacement Electronically Controlled Main Pump
The German Rexroth electronically controlled main pump is market-proven, featuring electrical signal-controlled flow for sensitive and rapid response; the larger hydraulic flow ensures faster operation.

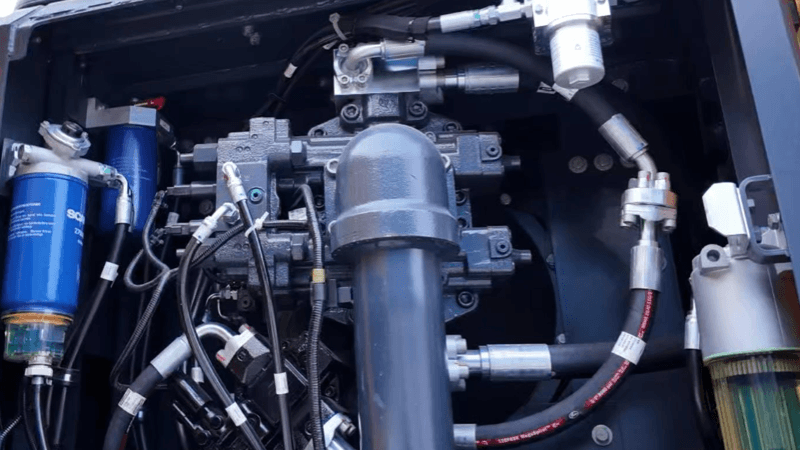

All Core Components are from Top-Tier Brands
The main valve, swing motor, and travel motor are all from top-tier brands, proven in the market and of reliable quality.The main valve features a one-button boost function, instantly increasing digging force.

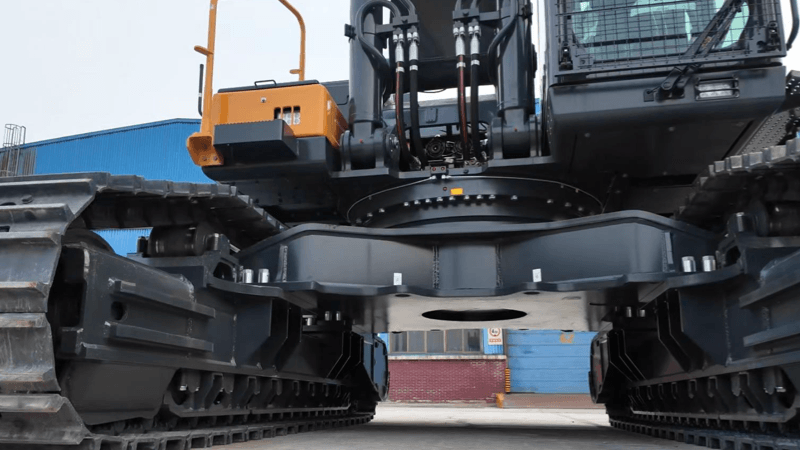

Retractable Mining-Type Underbody
In the 50T class of equipment, a retractable mining chassis provides unparalleled stability.

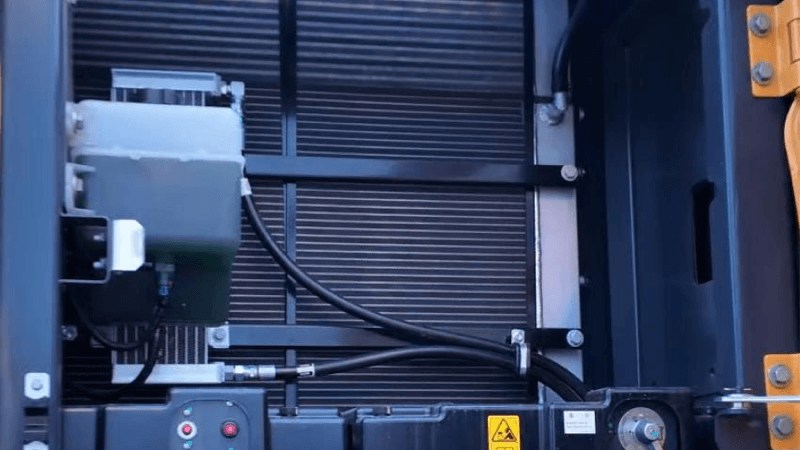

Improved Heat Dissipation
Independent water and oil radiators enhance heat dissipation performance.

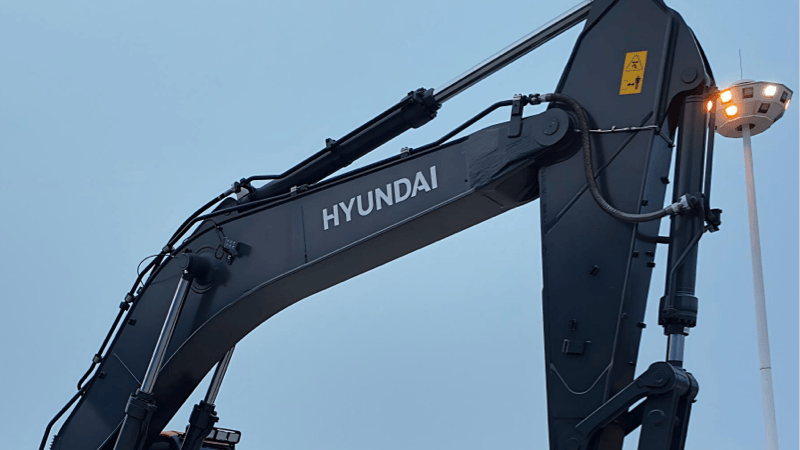

Heavy-duty working device
The heavy-duty boom and arm are specifically developed for the most challenging applications such as quarrying or large-scale excavation, which greatly enhances the overall performance of the machine.
