Hyundai HX560VL (T4) Crawler Excavator | 50T HX550L / HX505L Mining Excavator

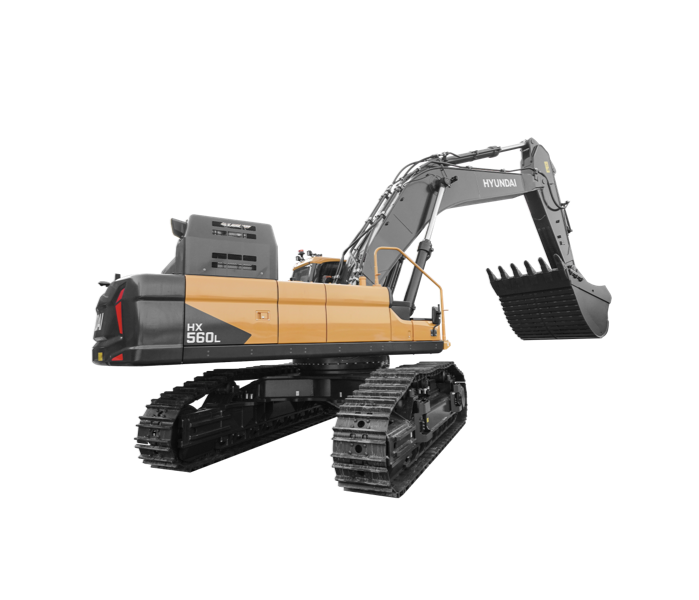

HX560VL(T4) Crawler Excavator

Operating Weight53.2 Ton

Bucket Capacity3.6 m³

Rated Power294 kW/1800 rpm

Catalogue Download

Inquire Now

Category:Crawler Excavator

SPECIFICATIONS

FEATURES

Product Detail

SPECIFICATIONS

GENERAL

Operating Weight	53200 kg
Bucket Capacity	3.6 m³

ENGINE

Manufacturer	Scania
Engine Model	DC13
Emission	Tier4
Rated Power	294/1800 kW/rpm

HYDRAULIC

Main pumps rated flow	2×390 l/min

PERFORMANCE

Swing Speed	9.2 rpm
Travel Speed	5.3/3.1 km/hr
Bucket Digging Force (ISO)	25.7/24.4 ton
Arm Digging Force (ISO)	23.5/24.9 ton

TANK CAPACITY

Fuel Tank	581 ℓ
Hydraulic Tank	385 ℓ

DIMENSIONS

Overall Length	11530 mm
Overall Height	4140 mm
Overall Width	3490 / 2990 mm
Min. Ground clearance	725 mm

WORKING RANGE

Boom Length	6300 mm
Arm Length	2900 mm
Max. Digging reach	11069 mm
Max. Digging depth	6991 mm
Max. Digging Height	9926 mm
Max. Dumping Height	6532 mm
Min. Swing radius	4715 mm

FEATURES

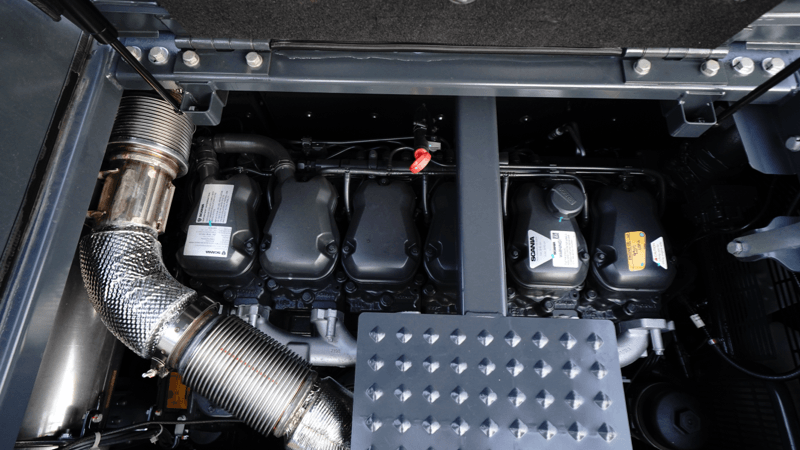

Scania DC13 Engine (294 kW)
Designed for superior performance and fuel efficiency, the Scania engine is reliable and durable. It ensures sustained, powerful output even under the harshest operating conditions. Its low fuel consumption and reduced risk of downtime significantly lower the total cost of ownership over the equipment's lifecycle.

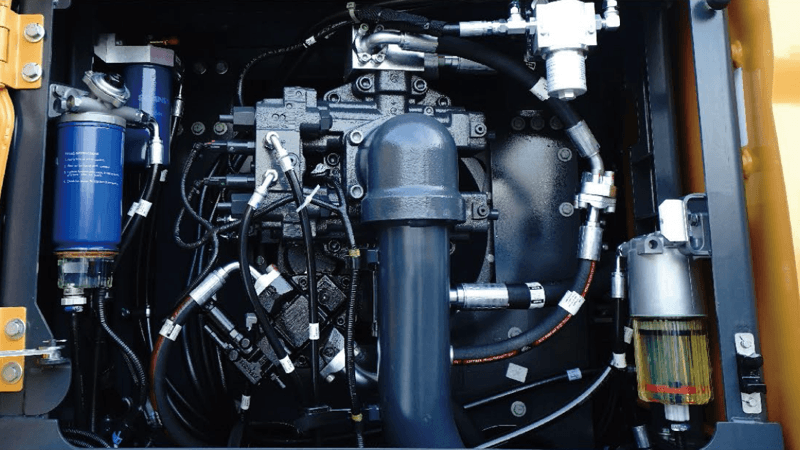

Imported Rexroth High-Displacement Electronically Controlled Main Pump
The German-made Rexroth electronically controlled main pump is market-proven; it utilizes electronic signals for flow control, ensuring sensitive and rapid response. The higher hydraulic flow rate guarantees faster operational speeds.

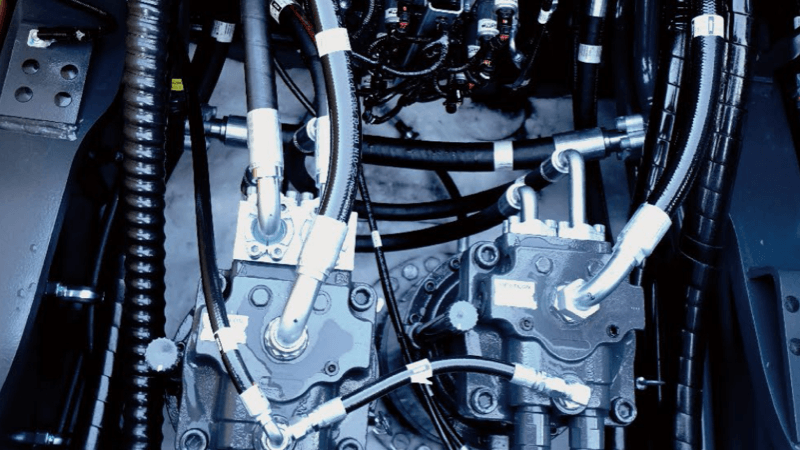

Industry-Leading Core Components
Key components—including the main control valve, swing motor, and travel motors—are sourced from top-tier brands with proven market reliability. The main valve features a one-touch power boost function to instantly increase digging force.

Retractable Mining-Grade Undercarriage
This 50-ton class machine features a retractable mining-grade undercarriage, providing unmatched stability.

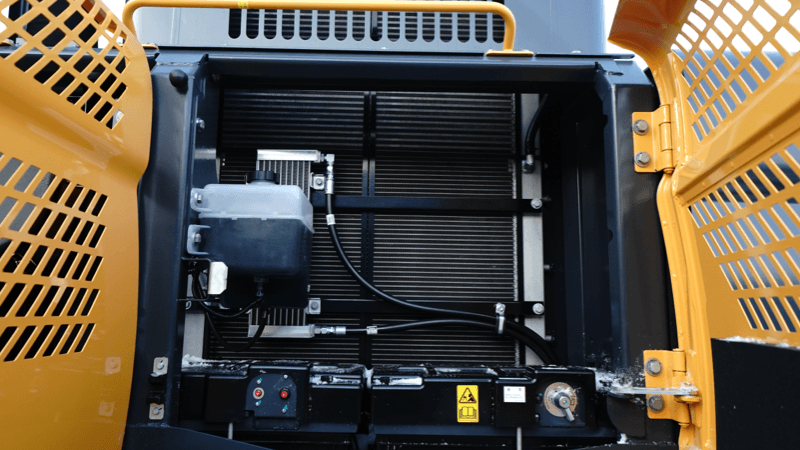

Enhanced Cooling Performance
Independent radiators for coolant and hydraulic oil ensure superior heat dissipation.

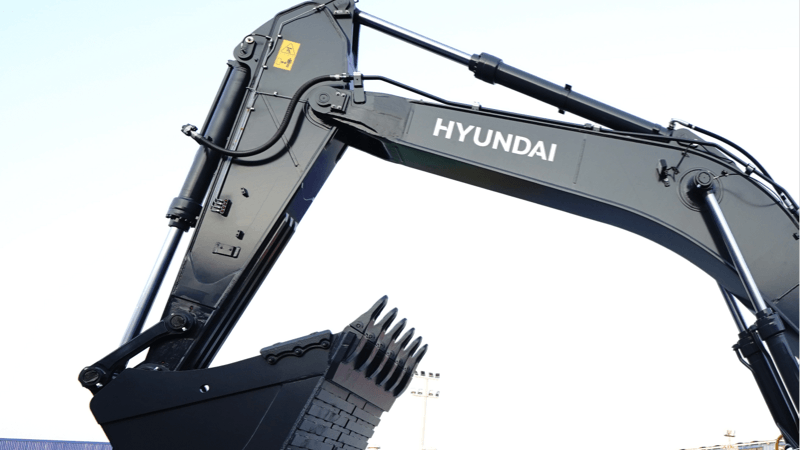

Heavy-Duty Work Equipment
The heavy-duty boom and arm are specifically engineered for the most demanding applications, such as quarrying and large-scale excavation, significantly enhancing the machine's overall durability.
