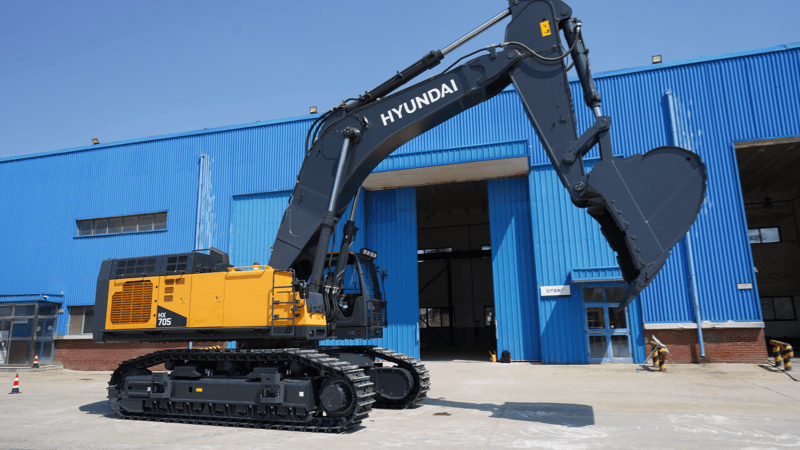

Hyundai HX705 (T4) Crawler Excavator | 70T Heavy Duty Mining Excavator

HX705(T4) Crawler Excavator

Operating Weight67.3 Ton

Bucket Capacity5 m³

Rated Power563 kW/2100 rpm

Catalogue Download

Inquire Now

Category:Crawler Excavator

SPECIFICATIONS

FEATURES

Product Detail

SPECIFICATIONS

GENERAL

Operating Weight	67300 kg
Bucket Capacity	5 m³

ENGINE

Manufacturer	Cummins
Engine Model	QSM15
Emission	Tier4
Rated Power	563/2100 kW/rpm
Max. Torque	3000/1400 Nm/rpm

HYDRAULIC

Main pumps rated flow	2×460 l/min

PERFORMANCE

Swing speed	8 rpm
Travel speed	4.1/3.3 km/hr
Max. gradeability	35° deg
Max. Traction force	55000 kgf

TANK CAPACITY

Fuel tank	760 ℓ
Hydraulic tank	595 ℓ

DIMENSIONS

Overall length	12150 mm
Overall height	4990 mm
Tail swing radius	3960 mm
Overall width	3340/3900 mm
Min. Ground clearance	790 mm

WORKING RANGE

Boom length	6650 mm
Arm length	2900 mm
Max. Digging reach	11430 mm
Max. Digging depth	6985 mm
Max. Digging Height	10695 mm
Max. Dumping Height	7135 mm
Min. Swing radius	5240 mm

FEATURES

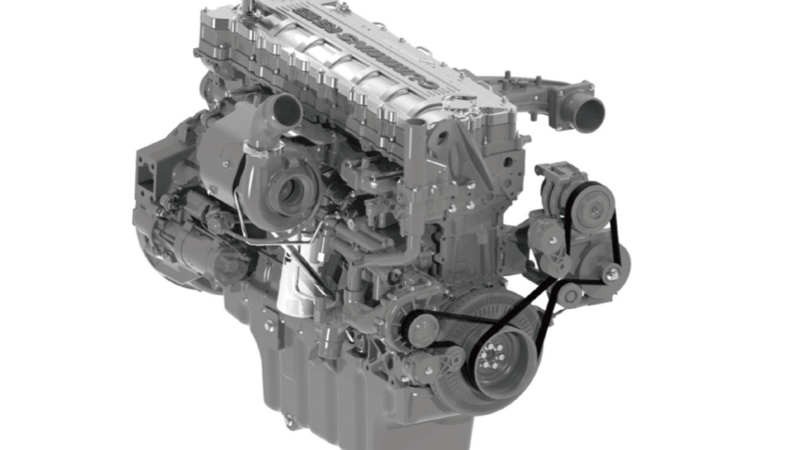

Powerful Performance
The HX705 is equipped with a Cummins QSM15 engine delivering up to 563 kW at 2100 rpm. It offers ample power reserves and excellent adaptability for high-altitude operations. With minimal torque fluctuation across the 1200–2000 rpm operating range, power delivery is smooth, ensuring seamless transitions between light and heavy loads.

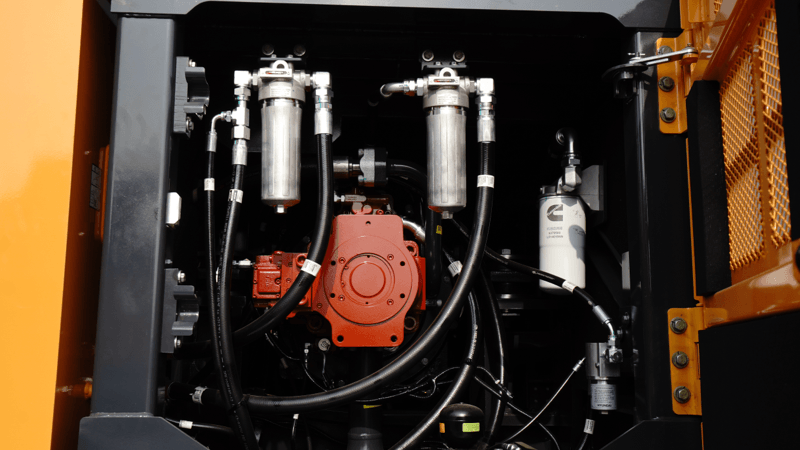

Advanced Pump and Valve System
It utilizes a custom high-displacement Kawasaki main pump paired with a specially tailored main control valve, ensuring smooth and responsive operation.

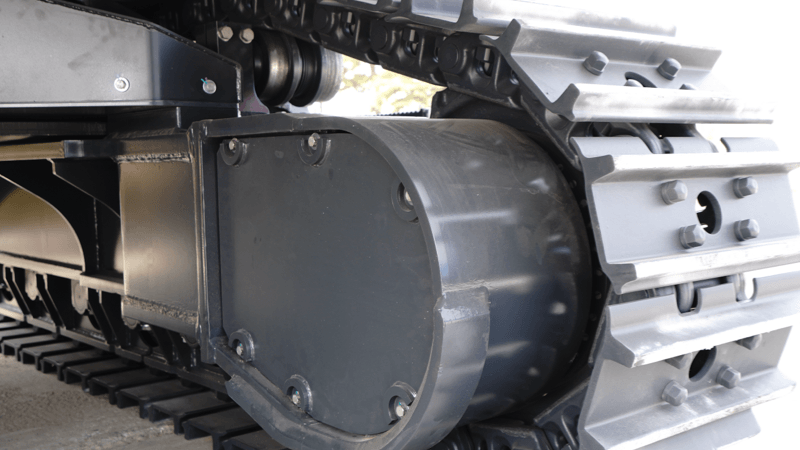

Ultra-Strong Extendable Undercarriage
Designed using finite element analysis and 3D modeling, the X-frame undercarriage ensures optimal performance. Our heavy-duty extendable undercarriage further enhances the machine's durability.

Reinforced Work Equipment
Built to withstand the harshest mining conditions, the HX705 features a reinforced work equipment structure for superior durability. The boom and arm utilize integrated casting designs and multiple reinforcements to ensure structural integrity.

Proven Core Components
All core components are sourced from industry-leading brands, meeting top-tier standards to deliver exceptional performance and durability.

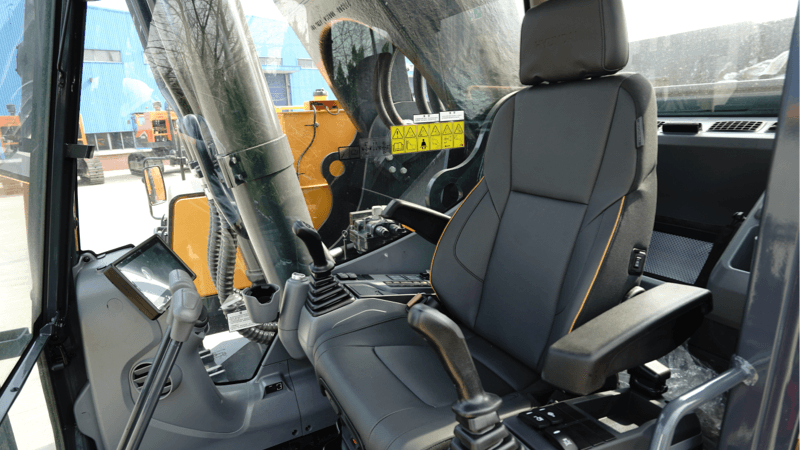

Premium Operator Environment
The HX705 is designed to provide an optimal working experience. The advanced cab features a high-quality heated seat with air suspension, maximizing operator comfort.
