Second Hand R505LVS (T3) Crawler Excavator

Operating Weight50.2 ton

Capacity2.8 m³ (rock bucket)

Rated Power299 kW/1800 rpm

Catalogue Download

Inquire Now

Category:Second Hand Excavator

SPECIFICATIONS

FEATURES

Product Detail

SPECIFICATIONS

GENERAL

Operating Weight	50.2 ton
Bucket Capacity	2.8 m³ (rock bucket)

ENGINE

Emission	T3
Engine Model	QSM11
Rated Power	299 kW/401 hp/1800 rpm
Max. Torque	193.7 N.M/1300 rpm

HYDRAULIC

Main Pumps Rated Flow	2×405 l/min
Implement Circuit (Power Boost)	330 (360) kgf/cm²

PERFORMANCE

Swing Speed	9 rpm
Travel Speed	5.1 km/3.25 hr
Max. Gradeability	35 deg
Max. Traction Force	32.8 ton
Bucket Digging Force (ISO)	28.4 ton
Arm Digging Force (ISO)	23.4 ton

TANK CAPACITY

Fuel Tank	620 ℓ
Hydraulic Tank	295 (486) ℓ

DIMENSIONS

Overall Length	11710 mm
Overall Height	3810 mm
Overall Width	3340 mm
Tail Swing Radius	3780 mm
Ground Clearance

WORKING RANGE

Boom Length	6550 mm
Arm Length	2400 mm
Max. Digging Reach	10630 mm
Max.Digging Depth	6400 mm
Max. Digging Height	10210 mm
Max. Dumping Height	8880 mm
Min. Swing Radius	4730 mm

FEATURES

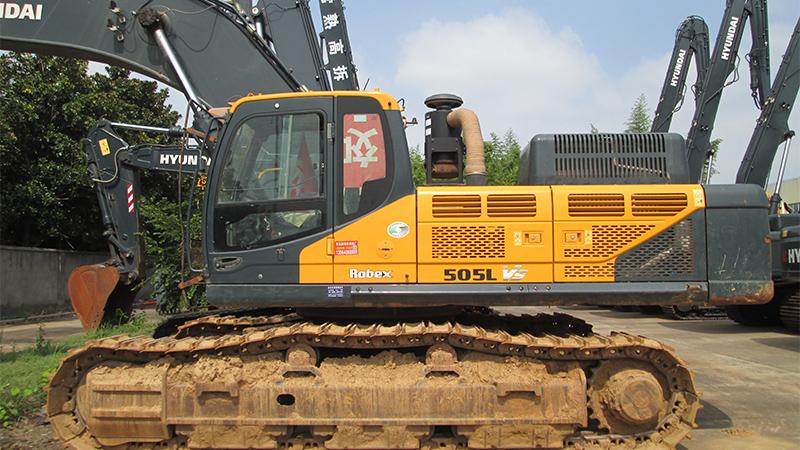

Whole Machine
The entire machine runs smoothly and complies with the Tier 3 emission standards.

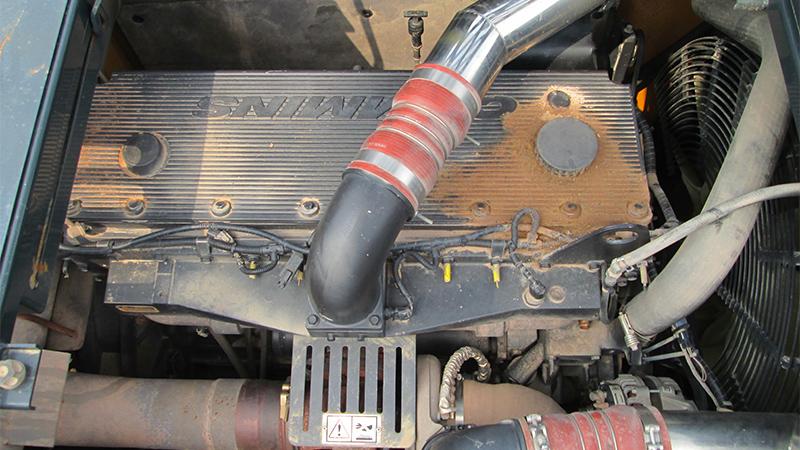

Engine
The engine operates quietly and functions well.

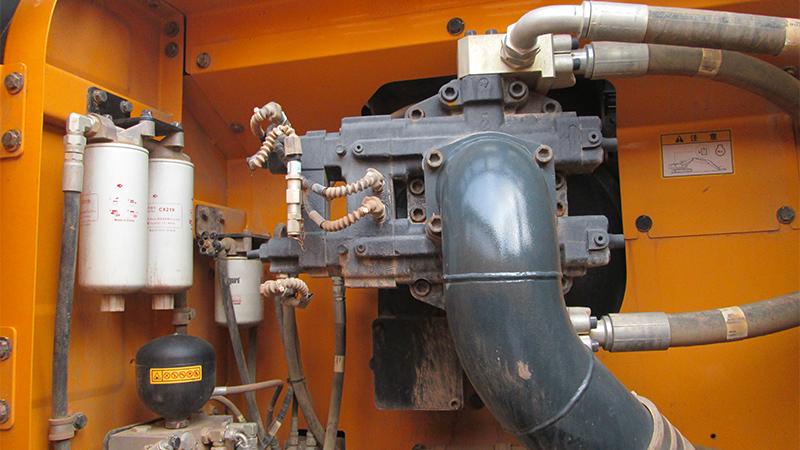

Main Pump
The main pump operates smoothly, without any unusual noises, ensuring high work efficiency.

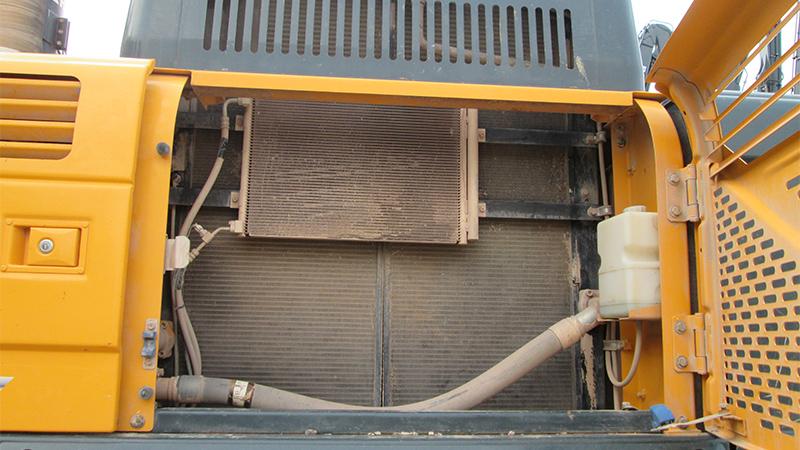

Radiator
The radiator operates smoothly, providing excellent heat dissipation.

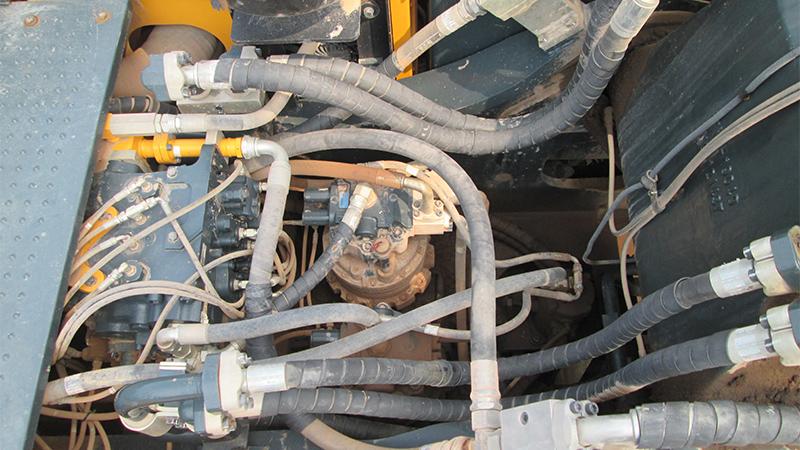

Main Control Valve
The main control valve operates smoothly, ensuring fast operation and strong combined working capabilities.

Slewing Bearing
The one-piece forged slewing bearing shows no signs of cracking.

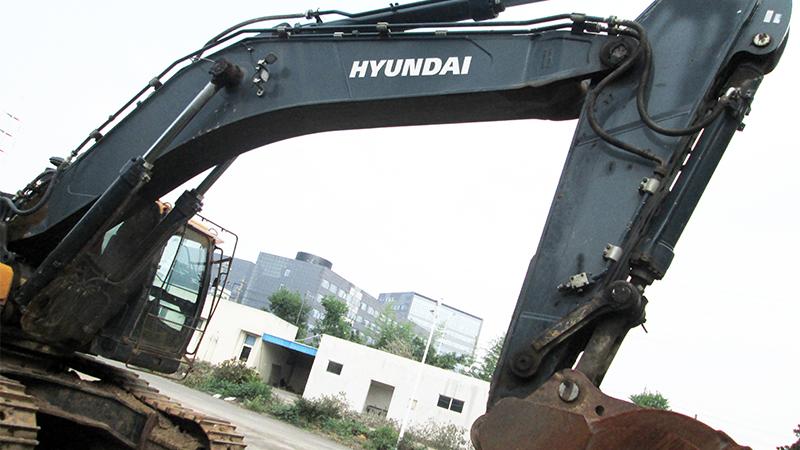

Boom and Arm
The high-strength boom and arm assembly are in good condition, with no signs of dropping.

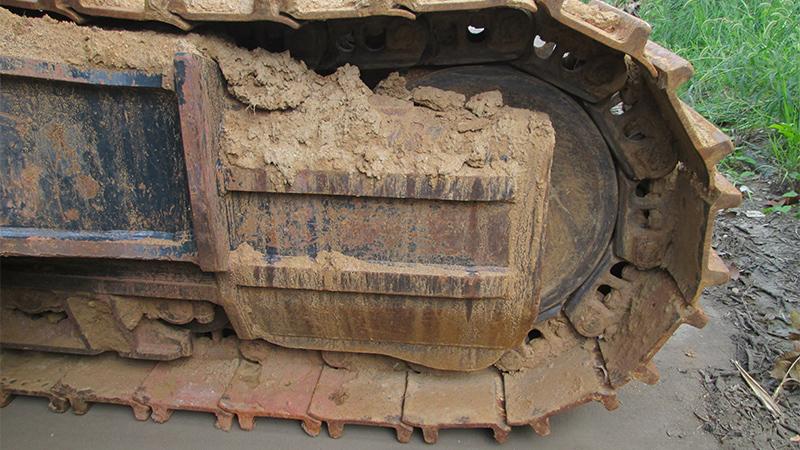

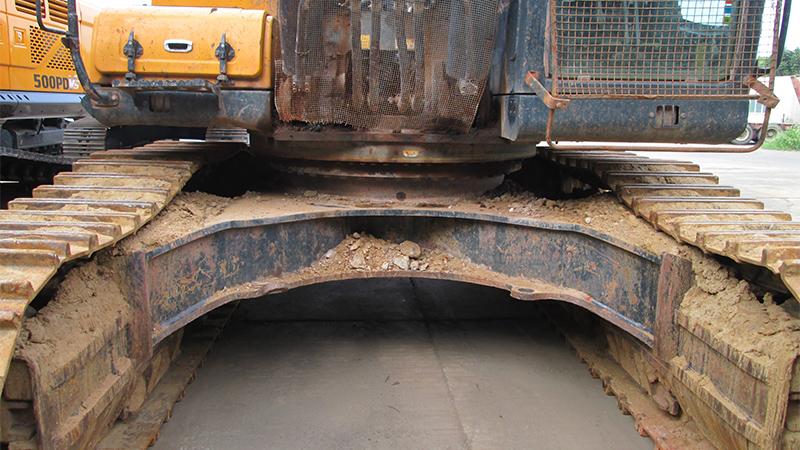

Travel
Stable movement, normal operation of idling, and lateral idling travel.

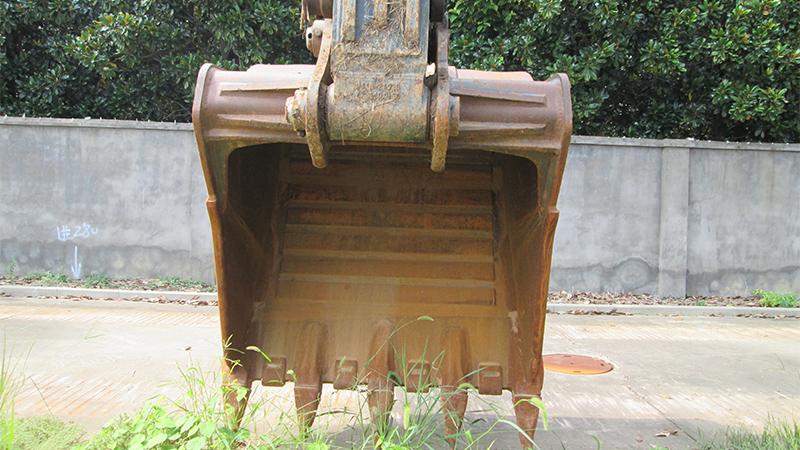

Bucket
Equipped with a standard rock bucket, facilitating loading operations.
