The Hyundai 550 excavator stands out as a high-output heavy machine for demanding earthmoving, mining, and large-scale infrastructure projects. Represented today by the Hyundai HX550L (T4) Crawler Excavator, this next-gen 52.5-ton class machine delivers strong breakout force alongside impressive fuel efficiency. Operators benefit from a spacious, fully protected cab with an ergonomic design during long working shifts. However, like any standard factory machine, it still faces scaling limits in severe extraction or highly specialized tasks compared with purpose-built setups.

Trusted industry partners like Tianheng Construction Machinery — Hyundai's designated special-equipment modification partner for 25 years — provide substantial added value through custom modifications and global fleet support. Tailored boom options and heavy work attachments maximize overall versatility across complex job sites. Ultimately, this Hyundai unit offers exceptional performance, strong structural reliability, and superior long-term value for modern commercial fleets.

Key Takeaways

• The Hyundai 550 excavator (HX550L T4) pairs a 280 kW Cummins X12 engine with a 3.6 m³ bucket for heavy digging and mass truck-loading projects.

• An ergonomic cabin with standard top and front protection mesh reduces operator fatigue and increases safety during long work shifts.

• Custom attachments like telescopic booms, rippers, and breaker arms expand the machine's ability to handle special jobs.

• Its 52.5-ton operating mass requires multi-axle lowboy trailers, special road permits, and careful transport planning between jobsites.

• Partner networks like Tianheng supply fast repair services, 50 direct branches, and genuine replacement parts to minimize downtime.

Hyundai 550 Excavator: Key Specifications at a Glance

Before weighing the pros and cons, here are the baseline factory specifications of the Hyundai HX550L (T4) that define the 550 class:

• Operating Weight: 52.5 ton

• Bucket Capacity: 3.6 m³

• Engine: Cummins X12 (Tier 4) — Rated Power 280 kW / 375 hp @ 2100 rpm; Max. Torque 1966 N·m @ 1400 rpm

• Digging Force (ISO): Bucket 27.14 t (29.61 t with boost) / Arm 24.65 t (26.89 t with boost)

• Working Range: Max. Digging Reach 10,955 mm; Max. Digging Depth 6,550 mm; 6,550 mm heavy-duty boom / 2,550 mm arm

• Breaker Compatibility: φ200–205 mm hydraulic breaker with standard breaking pipelines

*Exact configurations may vary by market and emission standard. Contact Tianheng for the precise specification sheet and factory-direct pricing.

Performance of the Hyundai 550 Excavator

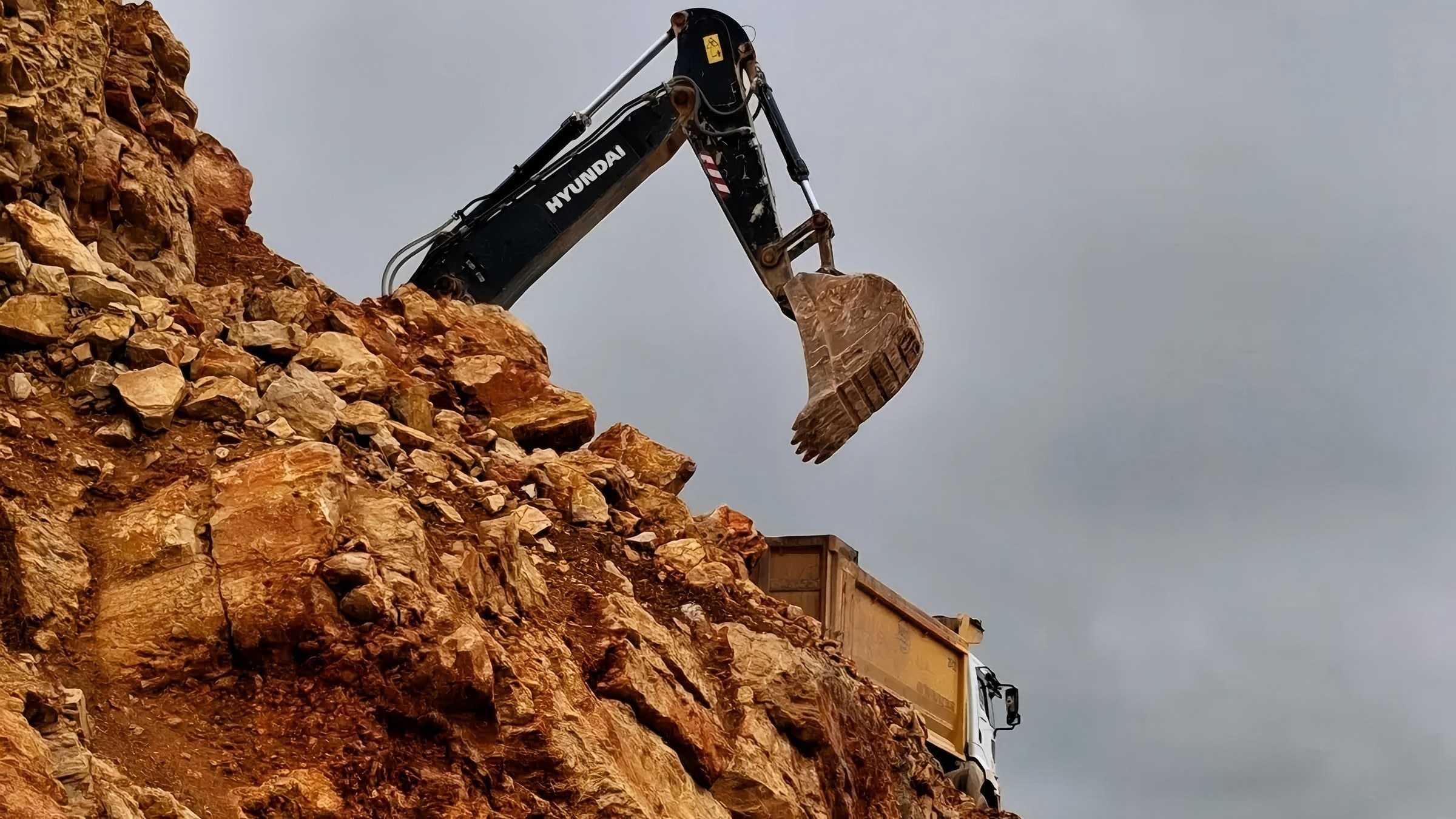

Powertrain and Fuel Output

The Hyundai 550 excavator is powered by a Cummins X12 industrial engine built specifically for severe operational demands, delivering 280 kW (375 hp) at 2100 rpm and a peak torque of 1966 N·m at just 1400 rpm. Heavy earthmoving tasks require steady power output during continuous truck loading and mass excavation work, and this powertrain maintains exceptional torque under intense mechanical resistance. Using DOC+DPF+SCR aftertreatment to meet Tier 4 emission standards — and eliminating the EGR system entirely — the X12 avoids the power losses associated with exhaust gas recirculation, while heavy-duty air filtration shields internal components from airborne dust particles.

Modern commercial job sites demand maximum fuel conservation to control daily operational expenditure. Intelligent engine control modules continuously optimize fuel injection parameters across changing work modes, and smart power modes allow operators to match engine output to specific site requirements. Engine idle management functions further reduce excess fuel consumption while the machine waits for haul trucks, delivering improved fuel efficiency without sacrificing essential breakout force on site.

Hydraulic System and Cycle Times

Hydraulic system responsiveness directly dictates the total volume of raw earth an operator can move per shift. The HX550L pairs an original imported Rexroth high-capacity hydraulic pump with an integrated EPIC power-optimization system, improving operational efficiency while achieving measurable fuel savings. High main-pump flow rates enable rapid boom elevation, quick arm retraction, and fast bucket dumping actions, accelerating repetitive mass earthmoving work and deep foundation trenching on busy jobsites.

The proven HCE main control valve includes a one-key boost function that delivers an instantaneous pressure boost to 330 (360) bar under heavy load for greater digging force — ideal for stubborn rock and high-resistance cuts. For quarry and demolition work, the machine comes standard with breaking pipelines, a large-capacity return oil filter, and a return-circuit accumulator, ensuring stable performance when matched with a φ200–205 mm hydraulic breaker. Operators gain exceptional fine-grading control while smooth joystick response eliminates mechanical lag during delicate positioning tasks.

Advantages of the HX Series Excavator

The HX series represents a significant advancement in heavy construction engineering. Rigorous factory quality audits and standardized control procedures verify structural integrity across every fabricated chassis component, ensuring exceptionally low defect rates and reliable job-site operation under severe environmental conditions. Machine owners experience minimal unscheduled downtime during critical site preparation phases, and the robust HX platform architecture guarantees dependable output for demanding commercial earthmoving projects.

Cabin Ergonomics and Comfort

Operator fatigue directly impacts daily job-site output during extended working shifts. The HX series cab is constructed from low-stress, high-strength welded steel and comes standard with top and front protection mesh, safeguarding the operator in rock-loading and demolition environments. Adjustable suspension seating reduces heavy vibration transmitted from hard ground digging, while ergonomic joysticks sit within natural reach distance to eliminate excess arm strain. Clear glass panels and slim support pillars provide wide vision angles, and advanced acoustic insulation lowers internal noise levels during continuous high-throttle operations.

Automatic climate control maintains comfortable cab temperatures through extreme weather changes, and a modern color touch-screen presents hydraulic pressure levels, engine metrics, and rear camera feeds in real time. Operators manage working settings quickly without losing visual focus on active excavation paths, preserving mental alertness and raising overall productivity during long daily assignments.

Operational Fuel Efficiency

Modern commercial fleet management requires optimal fuel conservation without sacrificing total mechanical power output. The HX series delivers a direct improvement in fuel efficiency through intelligent system integration: advanced engine management modules regulate fuel injection rates based on real-time load requirements, while automatic engine idle functions drop revolution speed during operational pauses on site. Specialized work modes allow operators to adjust hydraulic power delivery — economy modes restrict output during light trenching and fine-grading, while power modes supply maximum hydraulic pressure when breaking through stubborn rock formations.

Variable cooling fan drives regulate rotational speed according to internal engine fluid temperatures, and high-efficiency main hydraulic pumps convert mechanical energy into fluid flow with minimal heat loss. The result is lower total fuel cost per cubic meter of moved material, enhancing long-term component life and highlighting the practical value of HX technology in modern fleet operations.

Excavator Durability and Structural Build

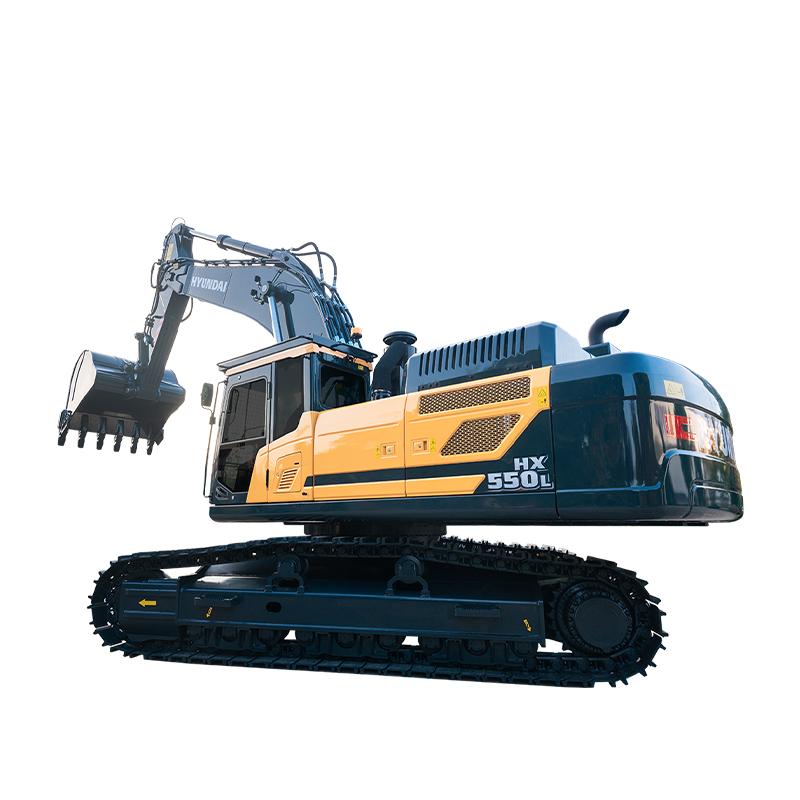

Reinforced Chassis Design

Heavy earthmoving operations demand maximum structural durability under extreme torsional stress. Industrial jobsites present punishing physical environments full of abrasive rock fragments and heavy impacts, so high-strength steel plates form the core foundation of the upper structure and lower track frame. Reinforced welding points along major stress joints prevent structural fatigue during continuous heavy lifting tasks, and thick steel guards shield critical undercarriage components against direct impact damage from jagged boulders.

Engineers designed the track frame with an X-leg structure to distribute heavy loads evenly across the crawler tracks. Forged steel sprockets and heavy-duty track rollers resist daily wear from abrasive soil conditions, while internal structural gussets reinforce the side frames against lateral twisting forces. This rugged engineering approach extends component service life during harsh rock extraction projects, letting operators execute demanding foundation cuts with total mechanical confidence.

Heavy-Duty Attachment Capacity

The base Hyundai chassis accommodates high-stress work tools for specialized construction assignments. The standard 6.55 m heavy-duty boom and 2.55 m arm deliver consistent breakout force during mass excavation tasks, and heavy auxiliary hydraulic circuits handle high-flow work tools without thermal overload. However, complex infrastructure projects often require specialized mechanical reach or severe impact capabilities beyond the standard factory configuration.

Authorized partners like Tianheng expand base operational capabilities through factory-grade custom engineering solutions. As Hyundai's designated special-equipment modification partner, Tianheng modifies standard units with extended telescopic booms for deep subway excavations and port material handling, severe-duty rippers for frozen ground, and heavy-duty breaker arms for concrete demolition. These custom boom and arm configurations improve jobsite productivity across challenging municipal projects, allowing fleet managers to convert a standard excavator into a high-yield specialized work platform.

Potential Limitations and How Tianheng Solves Them

No machine is perfect for every application. Below are the most common drawbacks fleet managers raise about the 550 class — and how an experienced modification partner turns several of them into competitive advantages.

Machine Size and Transport Logistics

With a 52.5-ton operating mass and wide track frames, the Hyundai 550 excavator demands specialized heavy-haulage arrangements between work locations. Highway transport regulations require multi-axle lowboy trailers, designated transit routes, and mandatory travel permits, while compact urban sites can limit tail-swing radius and maneuverability around existing foundations. Contractors must plan mobilization logistics — bridge clearances, road weight limits, and pilot vehicles — well in advance to avoid costly delays on time-sensitive infrastructure contracts.

Resale Value and Retention

Heavy equipment acquisition requires careful evaluation of long-term asset depreciation. Legacy brand names sometimes retain higher residual trade values in established secondary markets, and trade-in pricing fluctuates with regional contractor demand, so fleet owners may experience slightly steeper initial depreciation curves during primary operating cycles.

Residual value performance depends heavily on structured preventative maintenance logs, documented operational service records, and proper operating environment history.

Maintaining thorough machine service records preserves used-asset valuation effectively over time, and depreciation rates typically stabilize once the machinery completes its initial multi-year fleet service contracts.

Limitation 1: Standard Bucket Wear in Extreme Hard Rock

In severe quarrying or blasted-rock conditions, running a standard 3.6 m³ bucket against abrasive stone accelerates wear on the bucket, arm, and undercarriage, and can limit cycle times. The Tianheng Solution: Tianheng's engineering team outfits the 550 platform with severe-duty rippers and heavy-duty breaker arms calibrated to the machine's hydraulic flow, dramatically improving rock penetration and breakout efficiency without compromising the core structure.

Limitation 2: Insufficient Reach for Deep Excavation and Soft Terrain

The standard boom and arm are optimized for mass earthmoving, not deep foundation pits, river dredging, or swampy ground where standard tracks sink and stall. The Tianheng Solution: With two decades of modification expertise, Tianheng builds extended telescopic booms for deep subway and port work, and amphibious pontoon undercarriages that let the machine operate safely in water and soft mud.

Limitation 3: Lack of Dedicated Tools for Demolition and Scrap Handling

Standard buckets and breakers lack the precision and gripping mechanics required for high-rise demolition, electric-car dismantling, or scrap-yard material handling. The Tianheng Solution: Tianheng customizes building demolition machines, electric-car dismantling units, steel grapples, and even pile drivers for 12–24 m steel piles, transforming the standard 550 into a purpose-built production machine.

Maintenance and Fleet Support

Total Cost of Ownership

Structured maintenance schedules lower long-term machine operating expenses significantly across commercial earthmoving fleets. Equipment managers minimize unexpected site downtime by replacing fluid filters and hydraulic oil at recommended factory intervals, while scheduled oil sampling detects early metal wear within heavy gearboxes before costly mechanical failures occur. Routine field inspections catch minor hose leaks before fluid loss damages primary hydraulic pumps, and planned component replacements shield core engine systems from abrasive site dust and thermal degradation.

High operational efficiency directly reduces cumulative fuel expenditure across multi-year infrastructure contracts. Adhering to standardized factory service protocols prolongs main hydraulic pump lifespans and protects internal control valve bodies, lowering emergency repair frequencies and overall operational expenditure per working hour.

Dealer Support and Spare Parts

Comprehensive lifecycle support helps heavy construction companies maintain maximum jobsite machine availability. Tianheng operates 50 direct-operated branches, has ranked as Hyundai's overall sales champion for 7 consecutive years, and has held the "Diamond-level Dealer in Service & Parts" honor for 15 consecutive years. Certified service technicians deliver immediate diagnostic troubleshooting and rapid on-site repair support, while direct factory supply channels guarantee authentic engineering quality and exact component fitment for every machine overhaul.

An inventory of genuine Hyundai parts valued up to 5 million USD ensures you have the product you want when you want it.

Rapid delivery of critical wear items eliminates prolonged jobsite stoppages during time-sensitive construction phases, and dedicated distribution channels simplify ongoing fleet servicing for international contractors operating across remote project territories. For pricing, configuration advice, or a customized modification plan, contact Tianheng directly.

The Hyundai 550 excavator delivers exceptional hydraulic force, high fuel efficiency, and comfortable, well-protected cabin ergonomics for heavy construction operators. Fleet managers must, however, plan carefully for transport logistics and secondary-market resale retention. For conventional earthmoving, the standard Hyundai HX550L (T4) fits exceptionally well; for specialized tasks, contractors should leverage custom engineering modifications from Tianheng — extended telescopic booms, heavy-duty breaker arms, amphibious setups, and more. Evaluate regional dealer networks, warranty terms, and parts availability before investing, or request a free quote from Tianheng to guarantee strong long-term ROI across demanding job sites.

FAQ

What are the key specifications of the Hyundai 550 excavator?

The Hyundai HX550L (T4) Crawler Excavator offers a 52.5-ton operating weight, a 3.6 m³ bucket, a Cummins X12 engine rated at 280 kW, and a maximum digging reach of 10,955 mm — making it a strong choice for mass earthmoving, mining, and heavy truck loading.

What makes the HX series reliable for heavy construction?

High-grade materials, reinforced chassis welding points, and rigorous factory quality audits protect structural integrity during demanding job-site operations, while the proven HCE main control valve and imported Rexroth hydraulic pump ensure stable output under heavy load.

What custom machinery modifications can Tianheng provide?

As Hyundai's only designated modification partner, Tianheng builds extended telescopic booms, severe-duty rippers, heavy-duty breaker arms, amphibious setups, pile drivers, steel grapples, and building dismantling units for complex municipal or mining projects.

How does Tianheng support ongoing machine maintenance and spare parts availability?

Tianheng maintains an extensive genuine Hyundai parts inventory valued up to $5 million USD and serves customers through 50 direct-operated branches, backed by 15 consecutive years as Hyundai's Diamond-level Dealer in Service & Parts.

How can I get a price for the Hyundai 550 excavator?

Simply contact Tianheng through the official website to receive factory-direct pricing, official specification sheets, and tailored modification proposals for your project.
