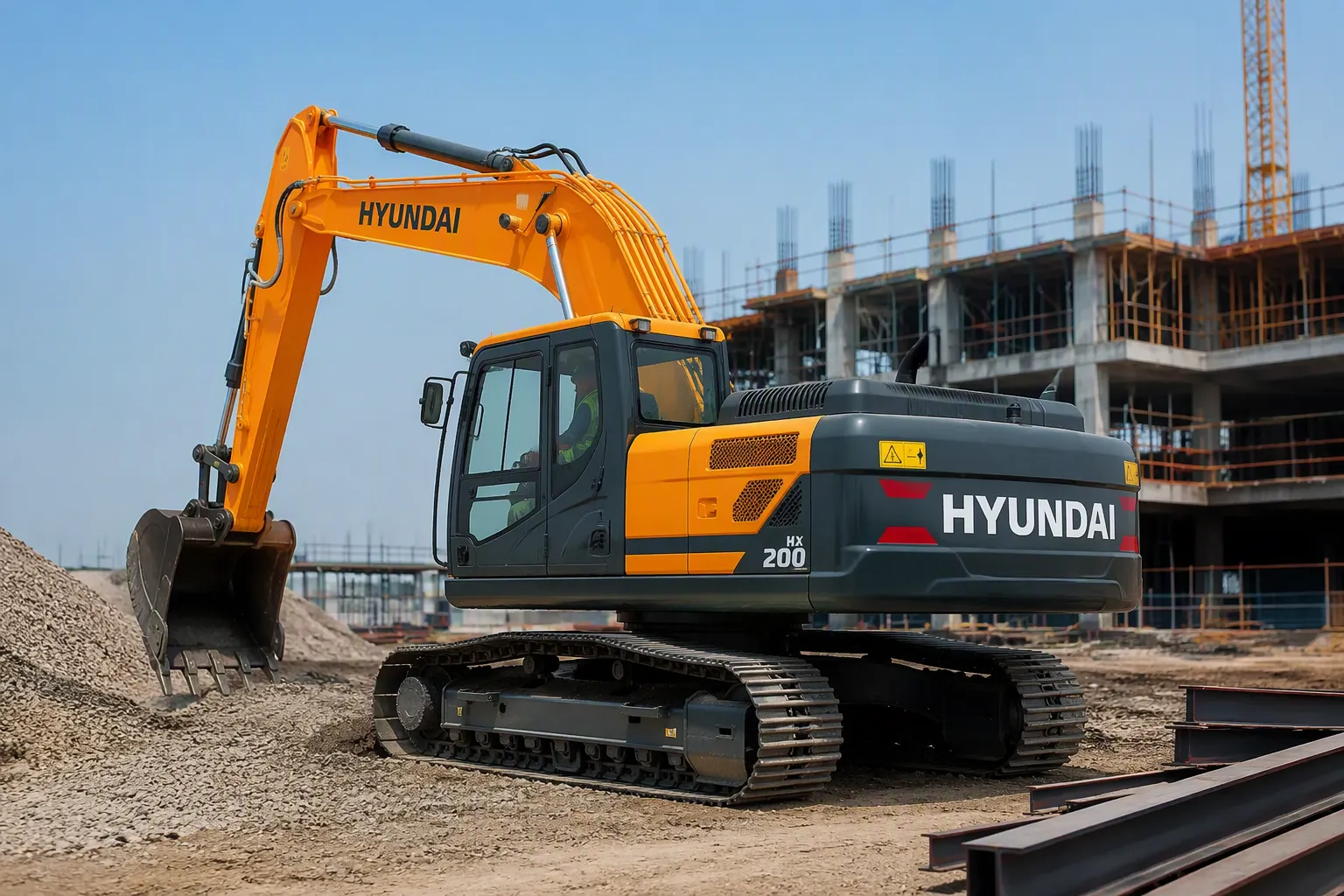

The Hyundai HX220HD commands attention in the highly competitive 20-to-22-ton mid-size excavator market. Weighing in at an impressive 21.42 tons, this machine bridges the gap between nimble utility work and heavy-duty earthmoving. Many fleet managers wonder if this specific model justifies its acquisition cost compared to legacy Japanese and American brands. This comprehensive review examines real-world performance, hydraulic efficiency, operator ergonomics, and long-term reliability. (For a quick summary, you can also check our breakdown of the 3 big pros and cons of the Hyundai HX220HD).

Hyundai Construction Equipment has steadily built a reputation for delivering robust power at a competitive price point. However, potential buyers need honest perspectives beyond the marketing brochures. By analyzing real-world owner feedback and engineering specifications, we provide a balanced assessment to help contractors determine if the HX220HD aligns with their operational demands and financial expectations.

Key Takeaways: The HX220HD at a Glance

• Proven Powertrain: Equipped with a 6BTAA-5.9 turbocharged engine delivering 110 kW (147 hp).

• Heavy-Duty Hydraulics: Dual main pumps provide 2×234 L/min flow, with a Power Boost circuit reaching 350 kgf/cm².

• Brute Digging Force: Generates up to 15.2 tons of bucket digging force to easily penetrate compacted soil and rock.

• Operator Ergonomics: A spacious, ROPS-certified cab with advanced sound-dampening keeps internal noise exceptionally low.

• Maintenance Efficiency: Left and right swing-open side covers provide ground-level access to crucial service points.

• Tianheng Support: Backed by a $5 million genuine parts inventory and 50 strategically located global branches.

Hyundai HX220HD Performance and Hydraulic Precision

Engine Specs and Power Output

The 6BTAA-5.9 Powerplant

At the heart of the Hyundai HX220HD lies the proven 6-cylinder, turbocharged, and charge-air-cooled 6BTAA-5.9 engine. This Tier 2 compliant powerplant delivers a rated power of 110 kW (147 hp) at 2000 rpm. Unlike smaller competitors that strain under heavy loads, the high displacement of this engine provides a flat torque curve, ensuring sustained pulling power without excessive lugging or overheating during continuous trenching operations.

Real-world performance in heavy digging

Field reports confirm the machine handles severe ground conditions with authority. The geometry of the 5680 mm boom and 2920 mm arm allows for a maximum digging reach of nearly 10 meters. When encountering hardpan or rocky soil, operators can engage the Power Boost mode, temporarily spiking the implement circuit pressure to 350 kgf/cm². This translates to a massive 15.2-ton bucket digging force (ISO), allowing the reinforced bucket to rip through tough material without stalling the engine or overwhelming the hydraulic relief valves.

Hydraulic System Efficiency

Pump flow rates and swing speed

The hydraulic architecture utilizes two variable displacement piston pumps, each pushing 234 liters per minute. This massive flow rate ensures rapid cylinder extension and retraction. The swing circuit is tuned to a smooth 12.2 rpm, prioritizing controlled material placement over jerky, high-speed cycling. This design choice drastically reduces shock loads on the swing bearing and upper frame, directly extending the structural lifespan of the machine.

Control precision for fine grading

Fine grading is where the HX220HD separates itself from budget-tier excavators. The hydraulic metering characteristics are exceptionally linear. Operators report that feathering the joystick yields predictable, millimeter-accurate bucket movements. This precision minimizes rework during site prep or utility trenching, saving contractors thousands of dollars in wasted man-hours over a project lifecycle.

Fuel Economy and Operating Costs

Fuel represents one of the largest variable costs in earthmoving. The HX220HD is engineered to optimize every drop from its massive 340-liter fuel tank. By matching hydraulic output to engine load via the advanced MCU (Micro Control Unit), the machine eliminates parasitic fuel waste during idle periods and light-duty grading.

Cost-Saving Intelligent Features

Total Cost of Ownership (TCO)

When calculating TCO over a 10,000-hour lifespan, the HX220HD’s highly competitive acquisition cost (as detailed in our complete 2025 excavator pricing guide) provides immediate capital relief. Combined with its fuel-efficient operating modes and a highly reliable undercarriage, the machine offers a faster ROI compared to premium-tier competitors, making it an incredibly smart investment for budget-conscious yet quality-demanding contractors.

Operator Comfort and Cab Ergonomics

A fatigued operator makes costly errors. Hyundai engineers designed the HX220HD cab as a high-productivity command center. The ROPS/FOPS-certified structure features expansive glass areas that eliminate blind spots, particularly to the right-side track and bucket.

Noise, Vibration, and Harshness (NVH)

Cab soundproofing and decibel levels

Heavy machinery is notoriously loud, but the HX220HD utilizes high-density acoustic insulation and viscous cab mounts to isolate the operator from engine drone and hydraulic shock. Internal cabin noise is kept exceptionally low—typically hovering around 72 dB—allowing for clear radio communication with ground crews and drastically reducing end-of-shift mental fatigue.

Climate Control and Tech Integration

HVAC system performance and monitors

Standard automatic climate control ensures consistent airflow, while the intuitive 8-inch LCD cluster provides real-time diagnostics, maintenance alerts, and rear-view camera feeds. The air-suspension seat absorbs harsh impacts from the reinforced box-type lower frame, ensuring comfort even when traversing jagged quarry floors.

Reliability, Durability, and Maintenance

Engineered for Severe Environments

The HX220HD features a welded, reinforced box-type lower frame made from high-tensile strength steel. The bucket linkage utilizes sealed, adjustable pins with anti-wear plates, drastically reducing the "slop" that develops in lesser machines over thousands of hours. Furthermore, standard track guards protect the lower rollers and chain links from the damaging effects of abrasive soils and demolition debris.

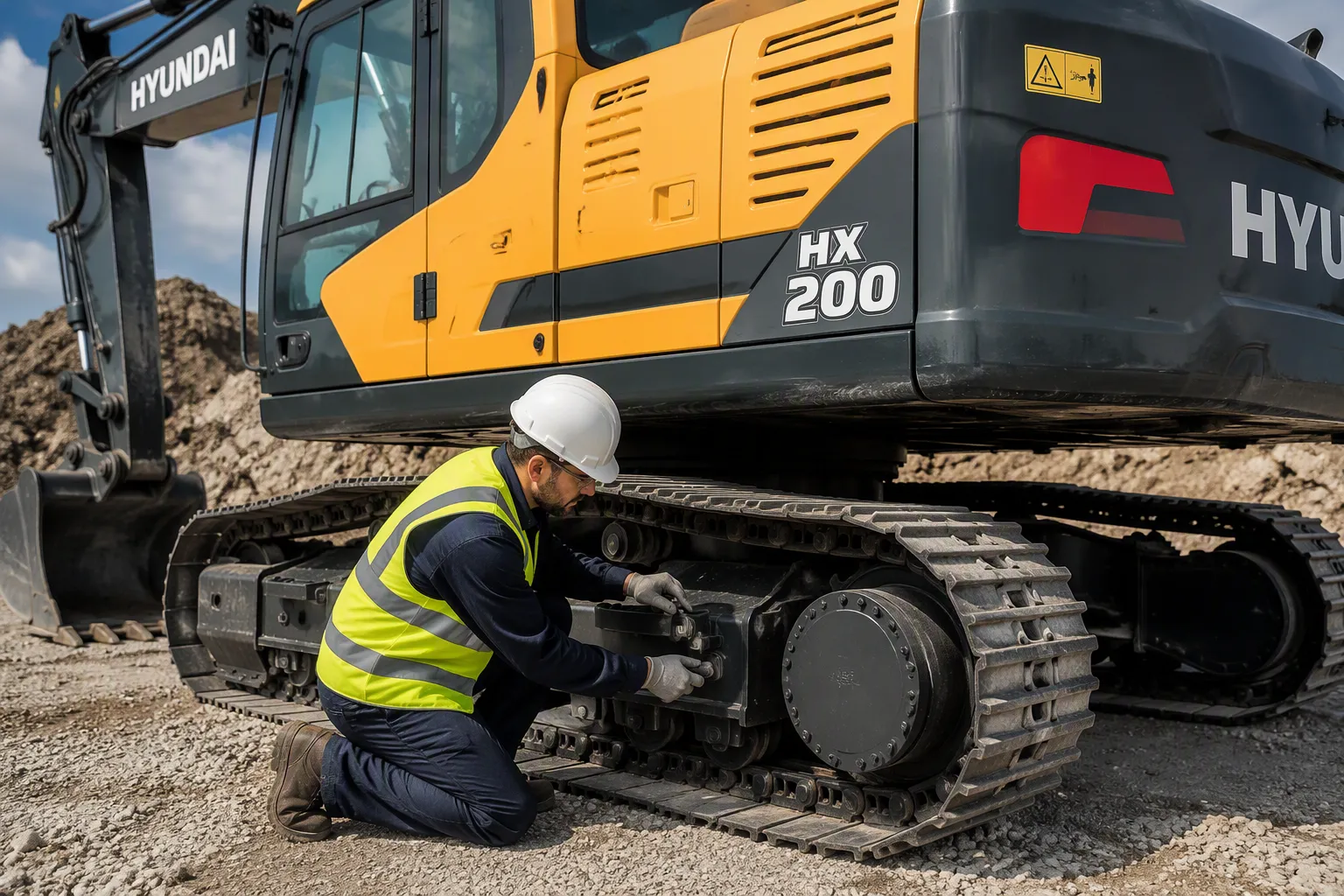

Service Intervals and Ground-Level Accessibility

Routine maintenance is where the HX220HD truly shines for fleet managers. The machine features unique left and right swing-open side covers. This clamshell design provides unrestricted, ground-level access to the engine oil filters, hydraulic pilot filters, and grease banks. Technicians can complete 500-hour service intervals in a fraction of the time required on competing models, directly maximizing machine uptime. Proactive care also helps avoid the common hydraulic and electrical issues that can plague lesser-maintained fleet machines.

Hyundai HX220HD vs. The Competition

Hyundai HX220HD vs. Caterpillar 320

Reliability and part cost contrast

When discussing heavy-duty reliability across top excavator brands, the Cat 320 is a legendary benchmark. However, it commands a premium price tag. The HX220HD competes aggressively on total lifecycle cost. While the Cat may hold a slight edge in resale value, the Hyundai’s lower initial capital expenditure and highly affordable genuine parts (supported by partners like Tianheng) often result in a superior net profit margin for mid-sized contractors.

Hyundai HX220HD vs. John Deere 210G/200G

Technology and control system features

John Deere’s mid-size excavators are highly regarded for their intelligent JDLink telematics and advanced Grade Control ecosystems, which are excellent for precision finishing work. The Hyundai HX220HD counters with raw earthmoving capability and a heavier 21.42-ton footprint. For contractors primarily engaged in mass excavation, heavy trenching, and quarry loading, the HX220HD’s sheer traction force and hydraulic flow often yield faster truck-loading cycles. For a deeper dive into spec-by-spec comparisons, read our full analysis on how the HX220HD stacks up against its competition.

The Tianheng Advantage: Unrivaled Support & Customization

Purchasing heavy equipment is only half the equation; aftermarket support dictates your daily profitability. As a Diamond-level Dealer with 25 years of specialized Hyundai expertise, Tianheng Construction Machinery eliminates the typical pain points of equipment ownership.

Strategic Parts Availability

Downtime is the enemy. Tianheng maintains a massive $5 million USD inventory of genuine Hyundai components. With 50 strategically located direct-operated branches, they guarantee swift, expedited distribution. Whether you need a replacement main pump, hydraulic seals, or undercarriage components, Tianheng’s logistics network ensures your HX220HD returns to the dirt in record time.

Exclusive Special Equipment Modification

Standard excavators cannot handle every specialized job site. Tianheng is Hyundai’s exclusive modification partner, capable of transforming the HX220HD into a bespoke tool for unique applications. Their engineering portfolio includes:

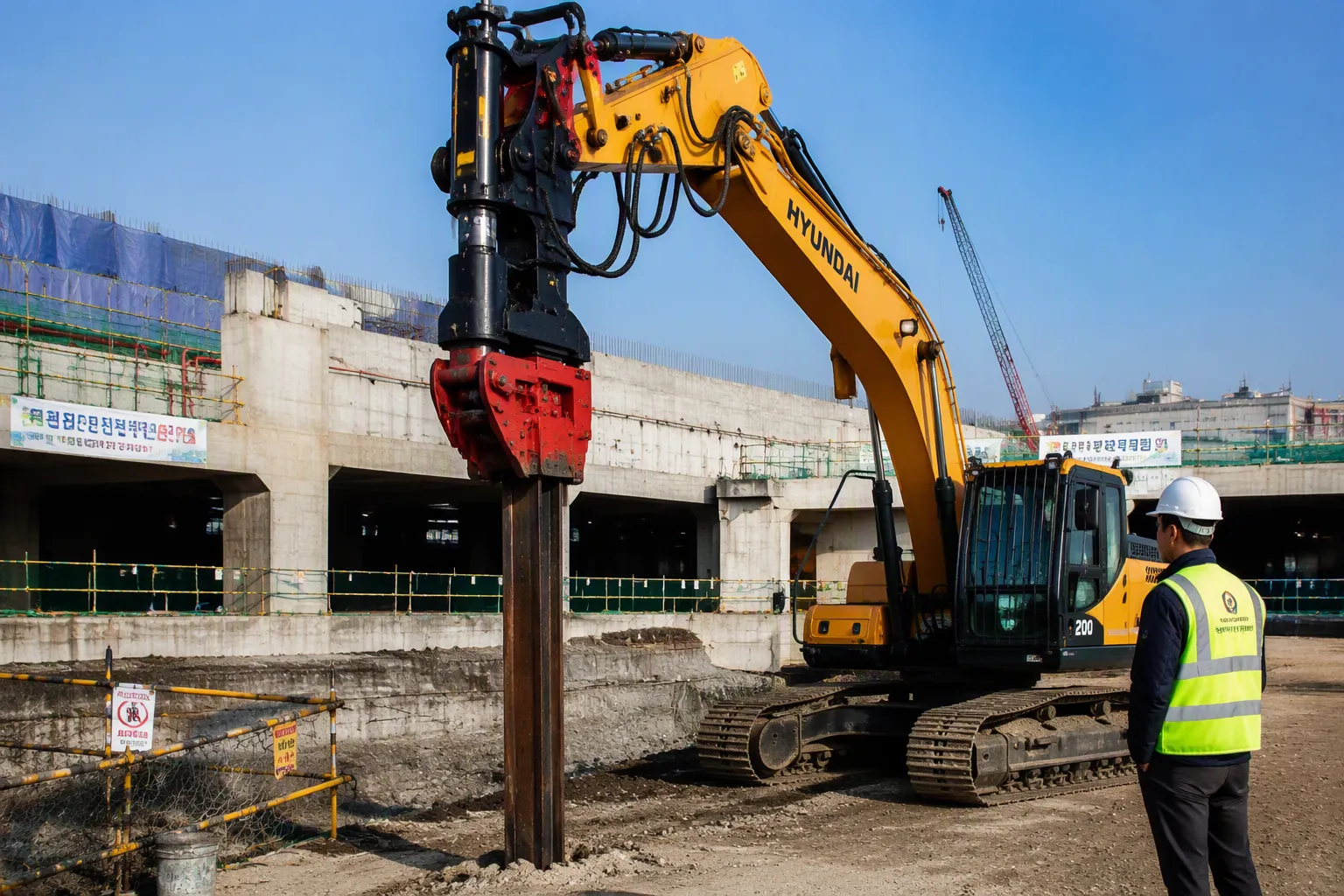

• Vibratory Pile Drivers: Engineered to handle 12 to 24-meter steel piles for deep foundation municipal projects.

• Electric Vehicle Dismantlers: Specialized hydraulics for the booming EV recycling sector.

• Amphibious Configurations: Custom pontoons and wide-track shoes for wetland and shallow-water dredging.

• Demolition Attachments: Heavy-duty grapples, rippers, and reinforced breaker arms for severe impact work.

Conclusion and Next Steps

The Hyundai HX220HD proves that you do not need to sacrifice performance to achieve a favorable ROI. With its 15.2-ton digging force, efficient 6BTAA-5.9 engine, and superior service accessibility, it stands as a formidable workhorse for mid-size contractors. While it may lack the ultra-premium price tag of legacy brands, its real-world productivity and the unmatched aftermarket support provided by Tianheng make it an incredibly compelling choice.

Ready to optimize your fleet? Don't settle for off-the-shelf limitations. Contact Tianheng’s engineering team today to discuss custom HX220HD modifications tailored to your specific job site, or request a comprehensive pricing and ROI analysis.

Get Your HX220HD Quote Today

FAQ

What is the operating weight and bucket capacity of the Hyundai HX220HD?

The HX220HD has an operating weight of 21.42 tons, placing it firmly in the heavy mid-size category. It is typically configured with a bucket capacity ranging from 0.87 to 1.2 cubic meters, depending on the material density and application.

How does the HX220HD's hydraulic system improve heavy digging?

The machine features a Power Boost function that temporarily increases the implement circuit pressure to 350 kgf/cm². This provides an extra surge of hydraulic force, allowing the 15.2-ton bucket digging force to easily penetrate compacted soils, frost, or rocky terrain without stalling the engine.

What engine powers the Hyundai HX220HD, and is it fuel-efficient?

It is powered by the highly reliable 6-cylinder 6BTAA-5.9 turbocharged diesel engine, producing 110 kW (147 hp). Combined with Hyundai's Auto-Idle and One-Touch Deceleration systems, it optimizes fuel delivery based on real-time hydraulic demand, significantly reducing daily fuel costs compared to older generation excavators.

How easy is it to perform routine maintenance on this model?

Maintenance is exceptionally straightforward. The HX220HD features left and right swing-open side covers that allow ground-level access to engine oil filters, hydraulic pilot filters, and grease banks. This clamshell design drastically reduces the time required for 250-hour and 500-hour service intervals.

Can Tianheng customize the HX220HD for specialized municipal work?

Yes. As Hyundai's exclusive modification partner, Tianheng can outfit the HX220HD with specialized attachments and structural modifications. This includes 12-24m pile driving masts for subway foundations, amphibious pontoons for dredging, and reinforced demolition linkage for heavy concrete processing.
