You need to know the correct weight when using the Hyundai HX 220. The official weight changes with each model:

The weight of an excavator, such as the Hyundai HX 220, can affect underground pipes and wires. Planning the job site carefully is a necessary part of the process. Following various safety rules is also important. Thinking ahead about the excavator's specific weight and what the subsequent work area will entail should be a constant consideration; starting the job without this in mind is a poor practice.

Hyundai HX 220 Weight Specs

Standard Weight

Knowing the standard operating weight is important to use the hyundai hx 220. Different sources, and to a point Hyundai themselves, provide slightly varying numbers. Near universal agreement puts the standard weight around 50,800 pounds. The Hyundai HX220 Excavator Specs Parts database is a good reference - 50,800 lbs being the figure they list as both standard and maximum operating weight.

Always look at the official Hyundai papers or ask your dealer for the right weight. These are the best ways to get the latest and most correct weight for your machine.

Weight Range And Variations

The hyundai hx 220 has different versions; the HX220L and HX220A L being two prime examples. Each one has its own specific weight. The weights themselves range from about 50,265 lbs to 56,040 lbs. What parts and simple tools are added will push the weight in either direction. The HX220A LR (Long Reach) model being the heaviest, possesses a longer boom/arm if I recall correctly.

• HX220L: This is the regular version. Most sources say it weighs between 50,800 lbs and 53,240 lbs.

• HX220A L: This newer version has more features and is heavier. Its weight can be as much as 54,516 lbs.

• HX220A LR: The long reach version is the heaviest, up to 56,040 lbs.

Small to medium changes in reported weight are not uncommon. Extra fuel, operator weight, or various 'added' parts may be counted by some sources and not others. Checking a setup prior to moving or using the machine is always a good idea.

Tip: Extra tools or any form of special purpose part will increase the total weight. Moving it or choosing a trailer/permit will be affected by this.

The hyundai hx 220 lets you pick what you need, but you must always know the exact weight for your version. This keeps you safe and helps you follow all the rules for moving it.

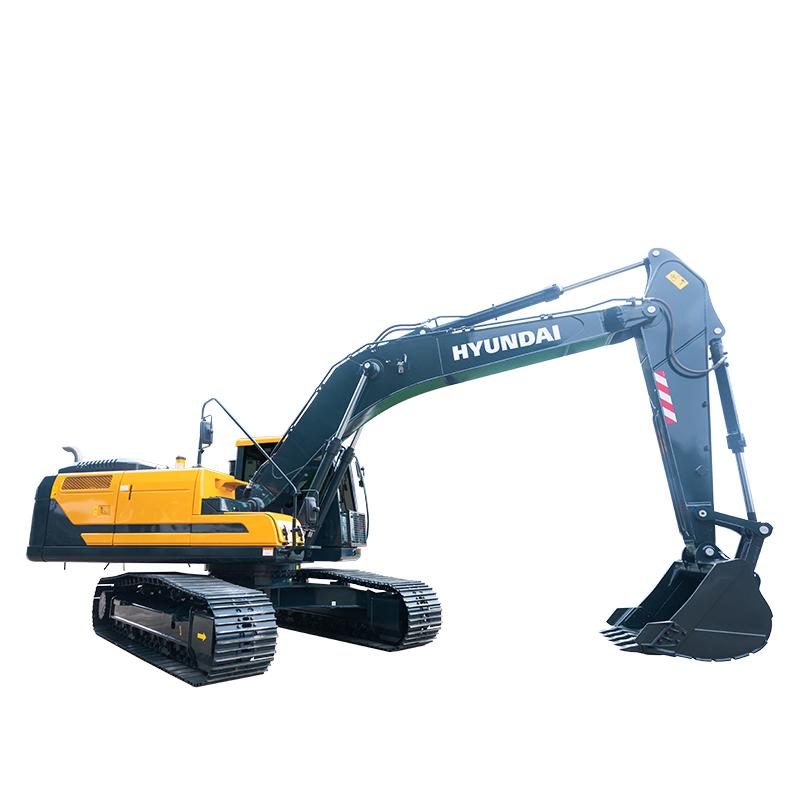

Factors Affecting Hyundai HX 220 Weight

Attachments And Equipment

Adding or taking off attachments changes the excavator's weight. Buckets, hydraulic breakers, grapples, and thumbs all contribute to making the machine heavier. Putting on a bigger bucket or some form of heavy duty tool specifically increases the total operating weight. This change in weight means a different trailer, or at least a separate permit, may be required to move it.

Hyundai and various equipment experts recommend checking the 'total weight' after any attachment is added. Overloading a trailer is to be avoided, transport laws must at least be partially followed.

Optional equipment - cab guards, extra lights, more piping for example - also adds this weight. Small changes can push the machine into a higher weight class. The operator's manual or official Hyundai documentation should always be consulted before moving the machine with any new 'optional' equipment.

• Key points to remember:

  • Each attachment has its own weight.

  • Optional equipment can add up fast.

  • Always check the total weight before moving.

Configuration Changes

You can pick different setups for the hyundai hx 220. These choices change the weight and how the machine works. For example, you can choose different undercarriages, counterweights, or hydraulic systems. Each choice changes how the excavator handles and how much it weighs.

Here is a table that shows how changes in setup affect weight and performance:

Track shoe width matters too. Wider tracks spread the weight out more. This lowers ground pressure and helps on soft ground. The table below shows how undercarriage choices change the total weight:

Counterweight choices are important. Heavier counterweights make the machine more stable and able to lift more, but they also add weight. You can see how counterweight choices change ground pressure and operating weight:

• Counterweight choices change the excavator’s operating weight.

• Different setups can change stability and ground pressure.

• The excavator can work on many types of ground.

Tip: Always check the Hyundai operator’s manual or ask your dealer before changing the setup. This keeps you safe and helps you follow the rules.

When you plan your job, you need to think about these things. The total weight changes how you move the machine, what ground it can work on, and how safe it is. If you know how attachments and setups change the weight, you can make better choices for moving and using the excavator.

Why Weight Matters

Transportation And Safety

You have to think about the excavator’s weight before moving it. The Hyundai HX 220 weighs approximately 22,200 kg. Heavier machines require special trucks to move them. Shipping becomes more expensive as a result. Some roads have set weight limits, changing the possible route you can take. Loading and unloading will be harder; a crane or some form of big lifting tool is often needed. Rules exist regarding how much equipment can weigh on the road. State and city specific rules apply. A permit may be required for any excessively heavy load.

Tip: Always check for risks before moving the machine. Make sure the trailer can hold the excavator’s weight.

Job Site Planning

The excavator's weight changes its steady state; what it can lift being one of the more direct effects. Hard ground works better with heavier machines. Picking up 'heavier things' is part of their improved performance. Checking ground pressure is a necessary part of protecting the job site itself. The table below details various weight scenarios and the ground pressure they apply.

Pick the right setup for your job site. Wider tracks help spread out the weight. This makes the excavator safer on soft ground.

Comparison With Similar Models

You should look at weights when picking a machine. The table below shows how the Hyundai R220-9S compares to others:

Heavier excavators can lift more. But they cost more to move. You need to think about both lifting and moving when you choose.

You need to know the exact weight of your Hyundai HX 220 excavator. The table below shows the main figures:

Understanding these numbers helps you plan safe transport and efficient work. Always check Hyundai’s official documents for the latest updates.

FAQ

How do you find the exact weight of your Hyundai HX 220?

Check the operator’s manual or Hyundai’s official website. You can also ask your dealer for the most accurate weight for your specific model.

Does adding attachments change the transport requirements?

Yes. Extra attachments increase the total weight. You may need a stronger trailer or a special permit for safe and legal transport.

What happens if you overload your trailer with the excavator?

• You risk damaging the trailer.

• You may break transport laws.

• Safety becomes a concern for everyone on the road.
