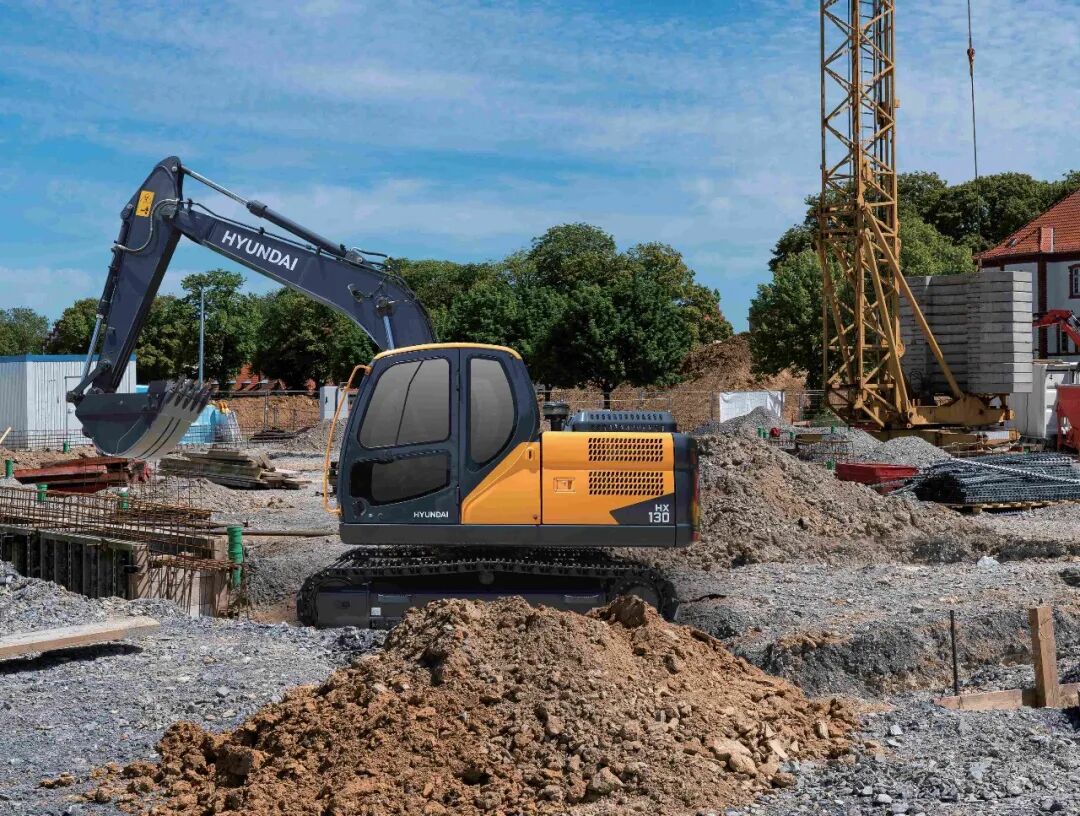

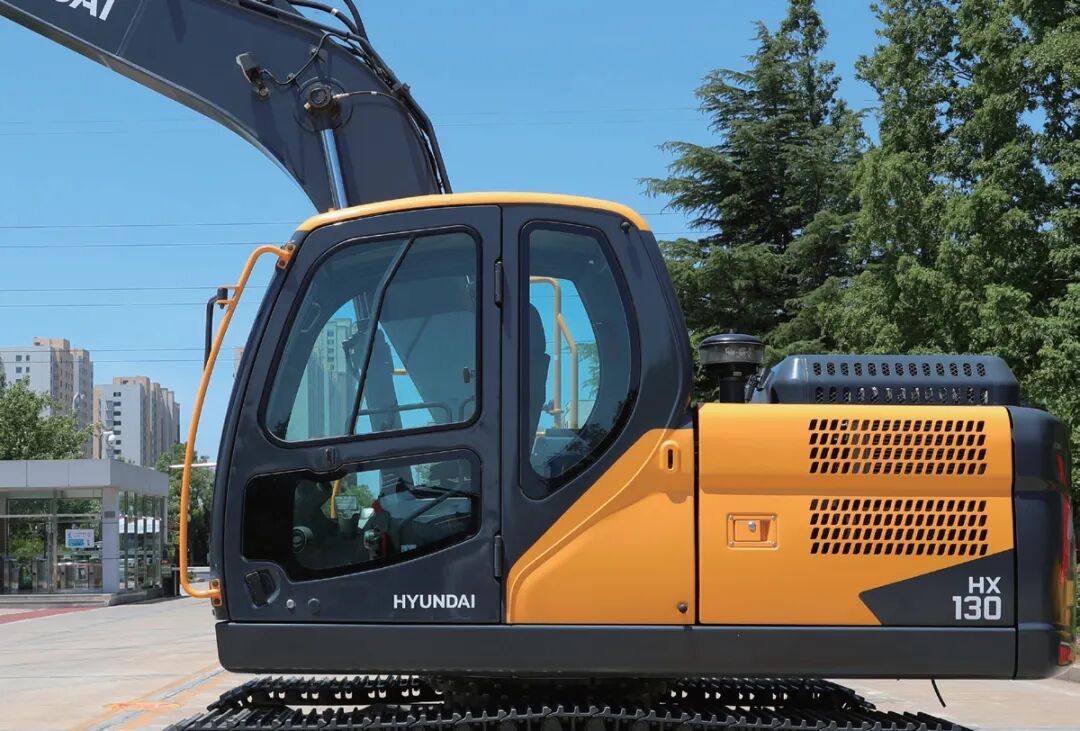

Whether in earth and stone works, municipal construction, farmland renovation or truck loading, the Hyundai HX130 compact excavator handles it all with ease. It integrates high efficiency, fuel economy, stability and comfort in one machine — built specifically for customers who pursue high returns.

With urea-free China Stage IV power, EPOS four-mode power management, SPC smart power control, imported hydraulic components and reinforced structures, the HX130 is positioned as the wealth-creating pioneer of its class. This guide covers its eight core advantages, plus the export and after-sales support available through Tianheng Construction Machinery.

Key Takeaways: The HX130 at a Glance

• Urea-Free China Stage IV Power: Hyundai D603 engine rated at 75 kW with DOC+DPF aftertreatment — no SCR and no urea system, cutting maintenance cost at the source.

• EPOS Four Power Modes: Economy, standard, power and breaking modes with one-key switching to match every duty cycle.

• SPC Smart Power Control: Senses load in real time and automatically matches engine speed to pump flow — light load drops rpm to save fuel, heavy load boosts output instantly.

• Imported Hydraulics: Imported main pump with max flow 2 × 114 L/min paired with a market-proven main valve for smooth, reliable compound actions.

• Reinforced Front Attachment: 4.6 m boom and 2.2 m arm, FEA-optimized with thickened key plates and reinforced welds.

• Upgraded Undercarriage and Swing: Reinforced new-generation undercarriage for stable travel; optimized swing hydraulics with smoother acceleration, precise stopping and faster truck loading.

• Multi-Function Cab: Wider space, optimized air conditioning and a multi-function LCD monitor keeping key parameters at a glance.

• Safety and Maintenance Double Upgrade: Auto safety lock, one-key emergency stop and centralized, within-reach filter service points.

• Tianheng Support: Backed by a $5 million genuine parts inventory and 50 strategically located global branches.

Quick Specifications: Hyundai HX130

Powertrain: Hyundai D603 China Stage IV, Urea-Free and Worry-Free

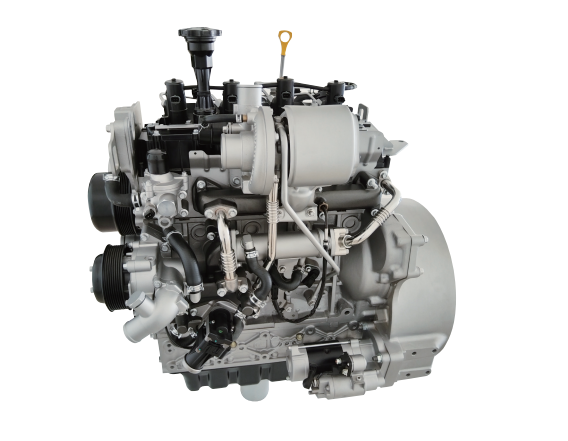

D603 engine: 75 kW with ample reserve

The Hyundai HX130 is powered by the Hyundai D603 China Stage IV engine, rated at 75 kW at 2,400 rpm. With ample power reserve on a 13,055 kg machine, heavy-load work never feels strained.

DOC+DPF without SCR: no urea, lower cost

The DOC+DPF particulate aftertreatment needs no SCR urea system at all. No urea tank on board means no urea purchases, no urea-related faults and fundamentally lower maintenance cost — saving both trouble and money over the machine's life. Export-market configurations may differ, so confirm the compliance package for your destination country with our sales team.

EPOS and SPC: Intelligent Power Management That Cuts Fuel at the Source

EPOS: four power modes, one-key switching

The EPOS electronic power optimization system provides four power modes — economy, standard, power and breaking — switched with one key to match every working condition. Combined with new-generation main pump and main valve flow matching, actions are coordinated and responsive, from fine metering work to heavy digging: truly spending less money to do more work.

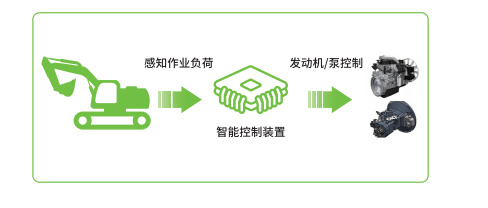

SPC smart power control: sense the load, match intelligently

The SPC smart power control system works on a simple core logic: sense the load, match intelligently. It perceives working load in real time and automatically adjusts engine speed and pump flow — light load drops rpm to save fuel, heavy load boosts output instantly to protect efficiency — eliminating wasted power at the source. Together with EPOS, refueling frequency noticeably drops: about one extra working hour per tank.

Imported Hydraulics: Large Flow, High Reliability

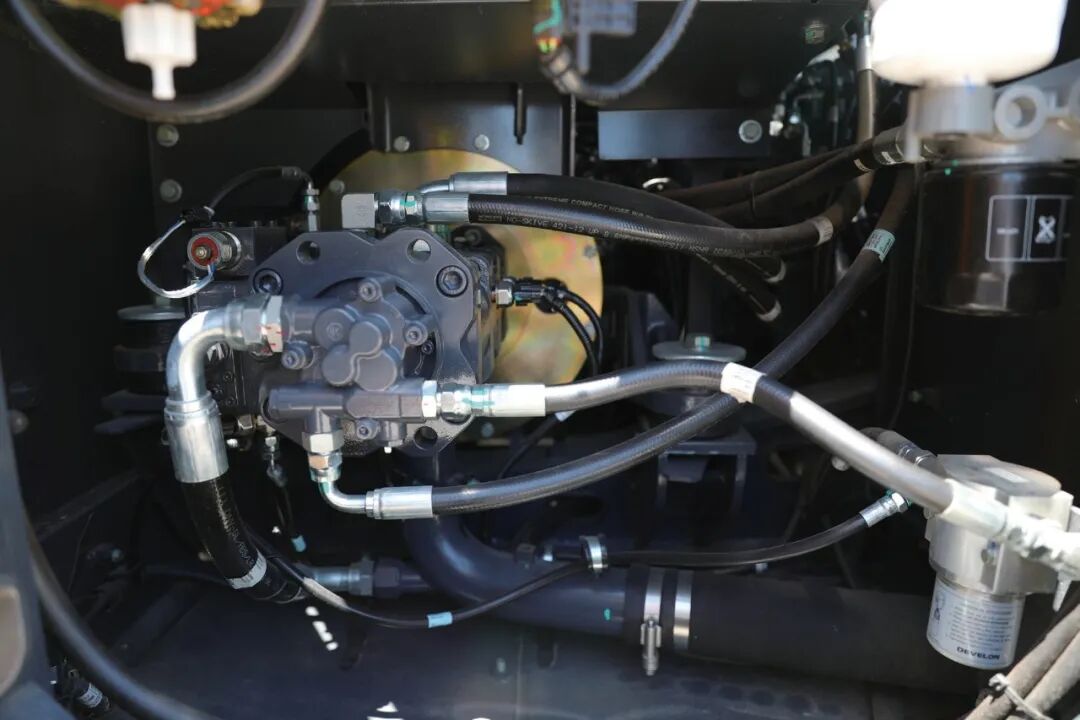

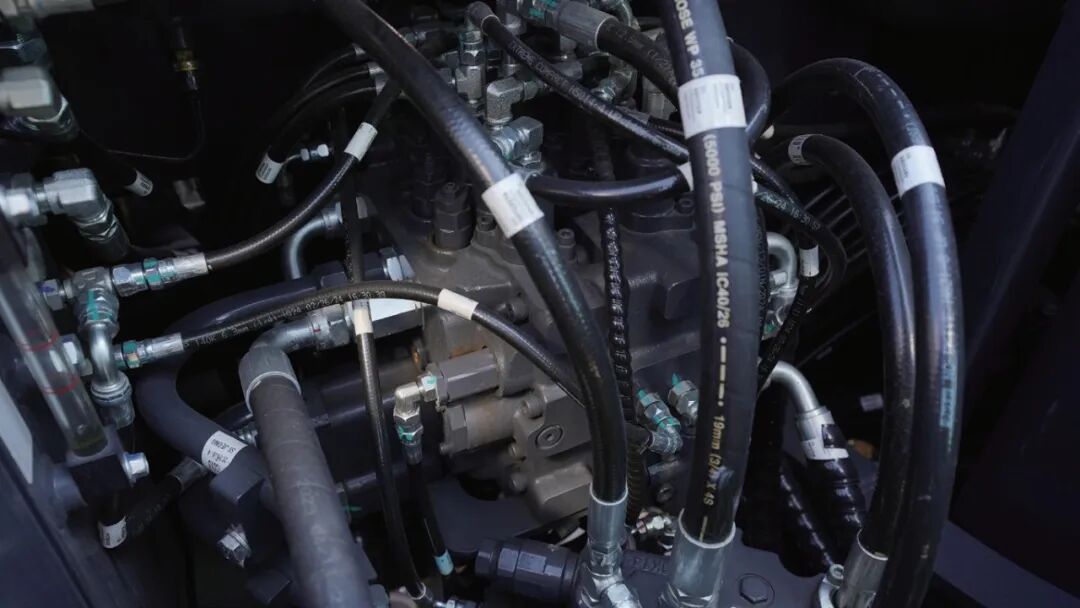

Imported main pump with 2 × 114 L/min max flow

The imported-brand main pump delivers a maximum flow of 2 × 114 L/min, ensuring coordinated compound actions even under load.

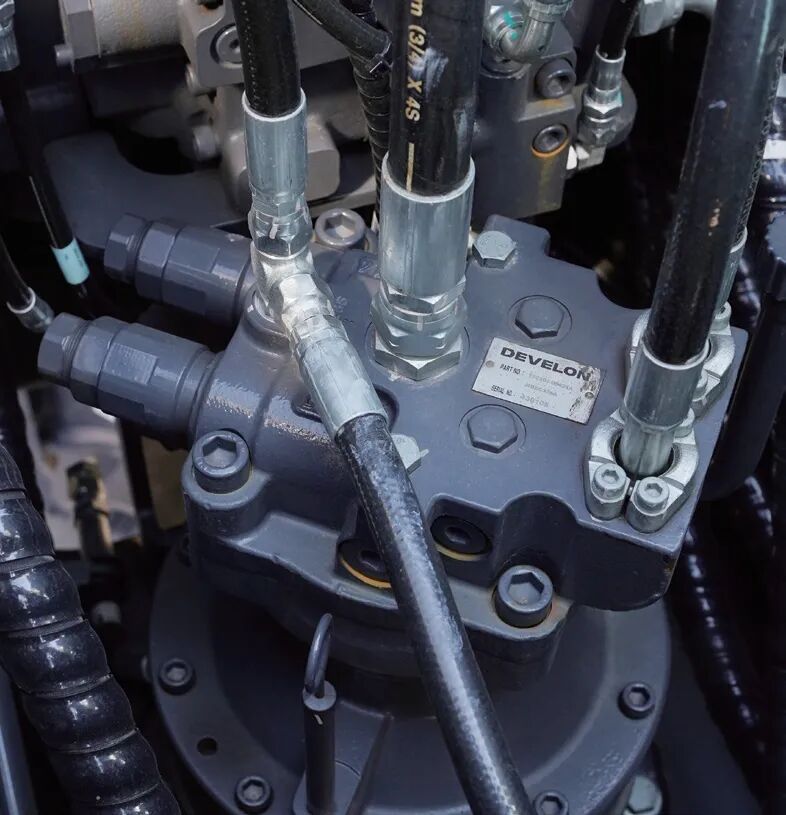

Market-proven main valve

The main valve has been verified by the market for years, offering stable performance and a low failure rate. Hydraulic response is quick and actions are coordinated — whether compound or single actions, operation is smooth and efficient, keeping working efficiency ahead of its class.

Reinforced Front and Undercarriage: Built for Harsh Conditions

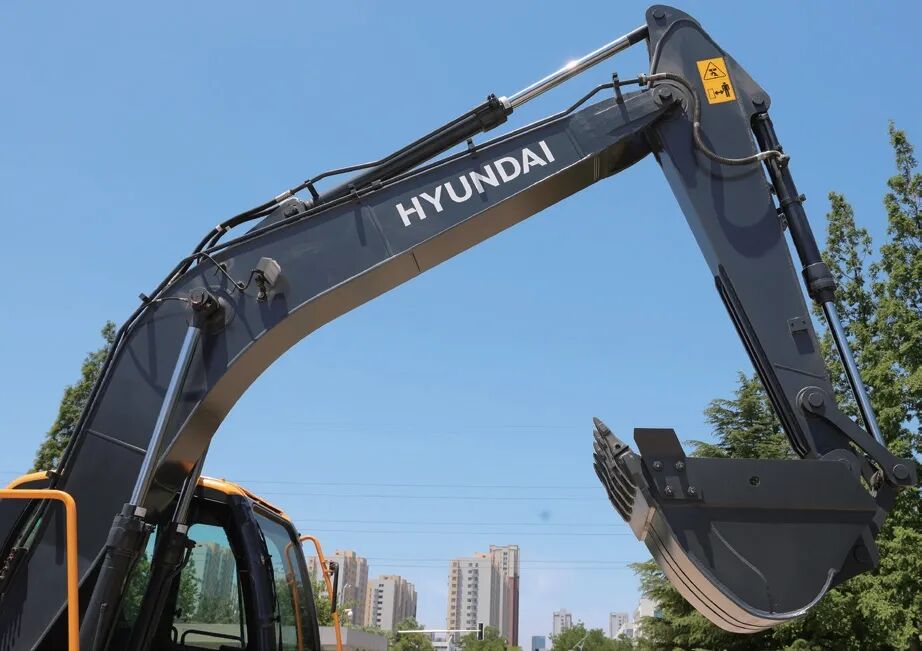

FEA-optimized boom and arm: 4.6 m / 2.2 m

The 4.6 m boom and 2.2 m arm give a wide, class-competitive working envelope. The front attachment is optimized by finite element analysis, with thickened key plates and reinforced welds for long-term strength.

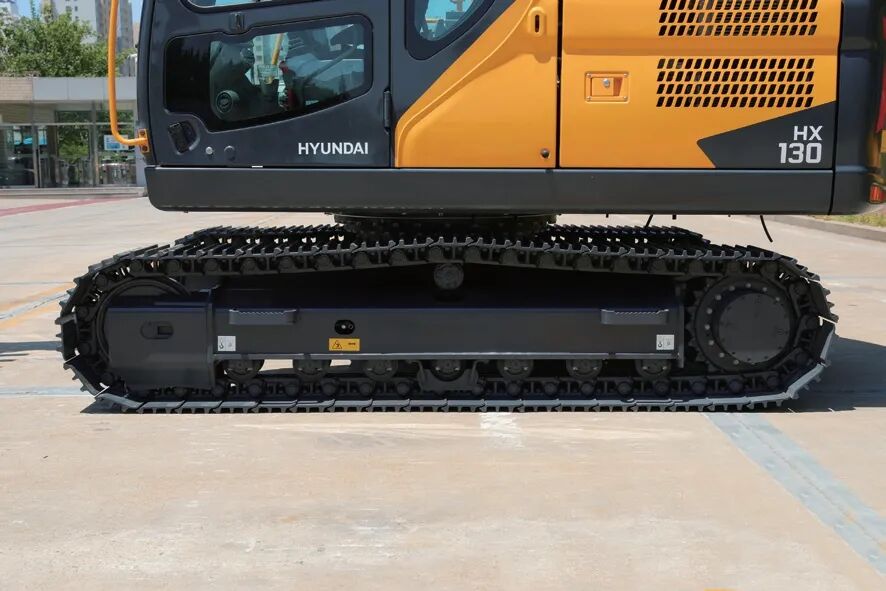

Reinforced undercarriage and optimized swing

The new-generation reinforced undercarriage carries heavier loads with steadier travel, standing up to harsh mine and earth-and-stone conditions. The optimized swing system delivers smoother acceleration and deceleration with more precise stopping, making truck loading and trenching compound actions smoother and more efficient — stability and swing efficiency both improved.

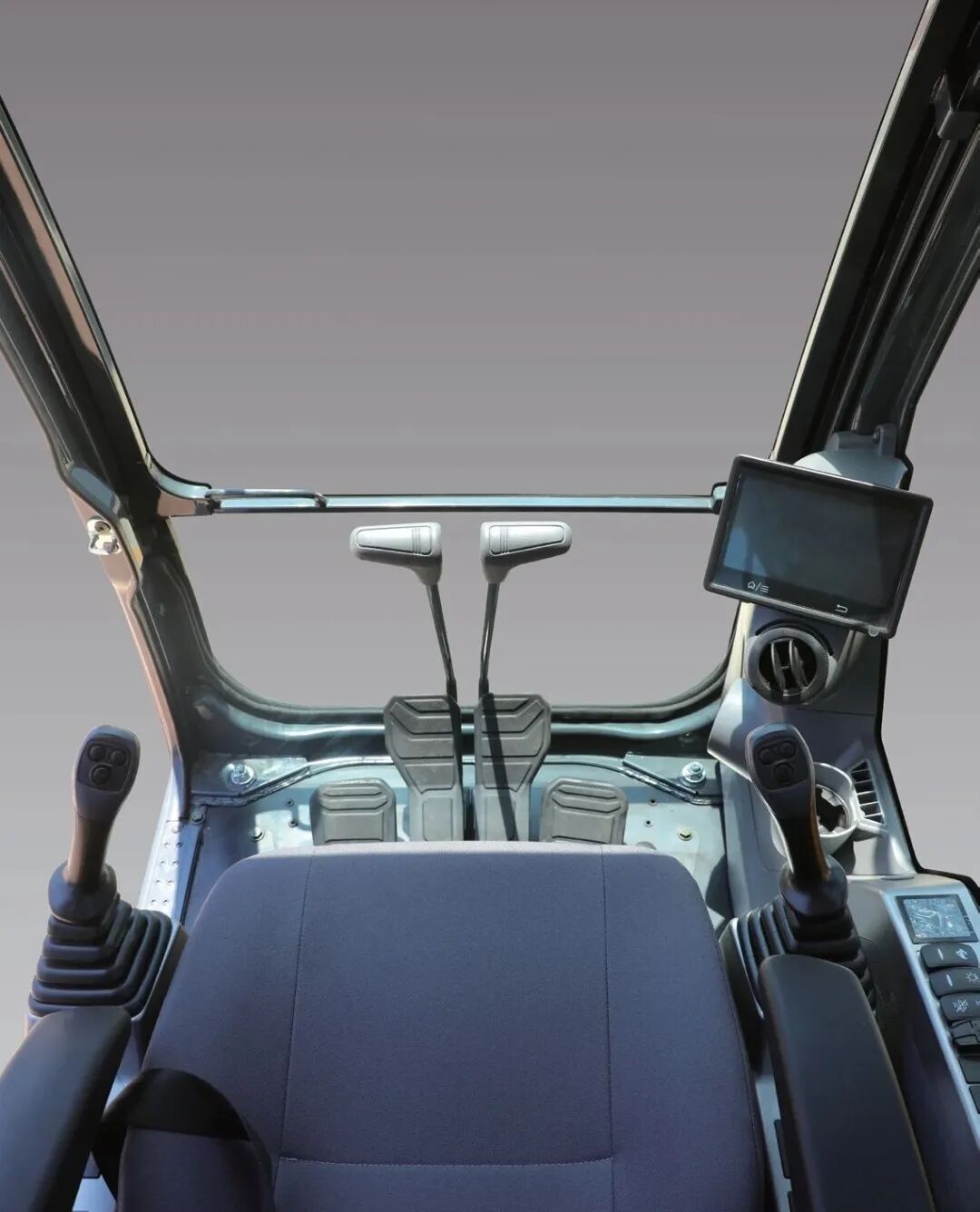

New Multi-Function Cab: Comfort and Intelligence Together

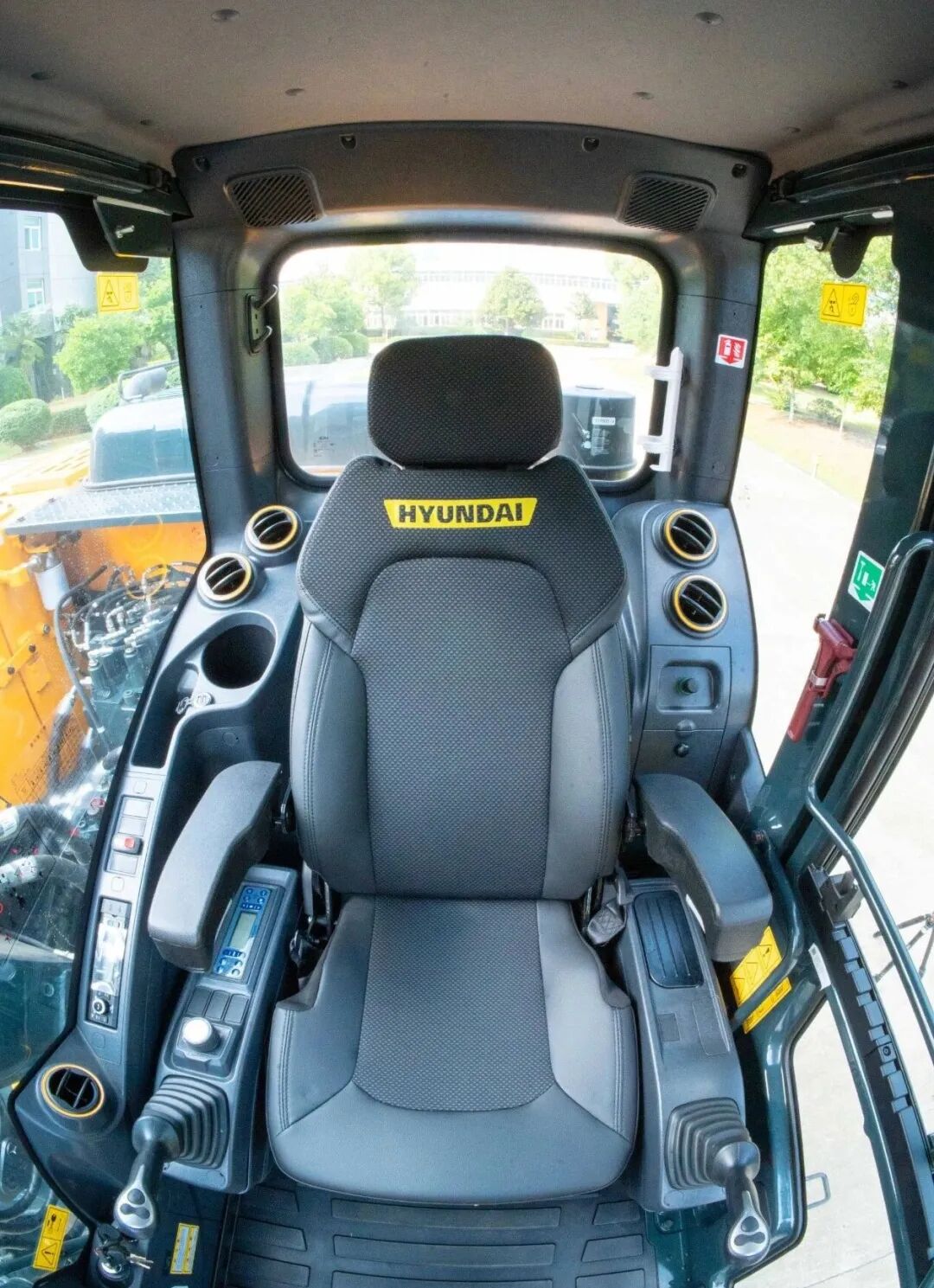

Wider space, optimized climate

The new multi-function cab offers further widened interior space and an ergonomically optimized layout. The improved air-conditioning system keeps the cab comfortable and better sealed against dust, so long shifts stay less tiring.

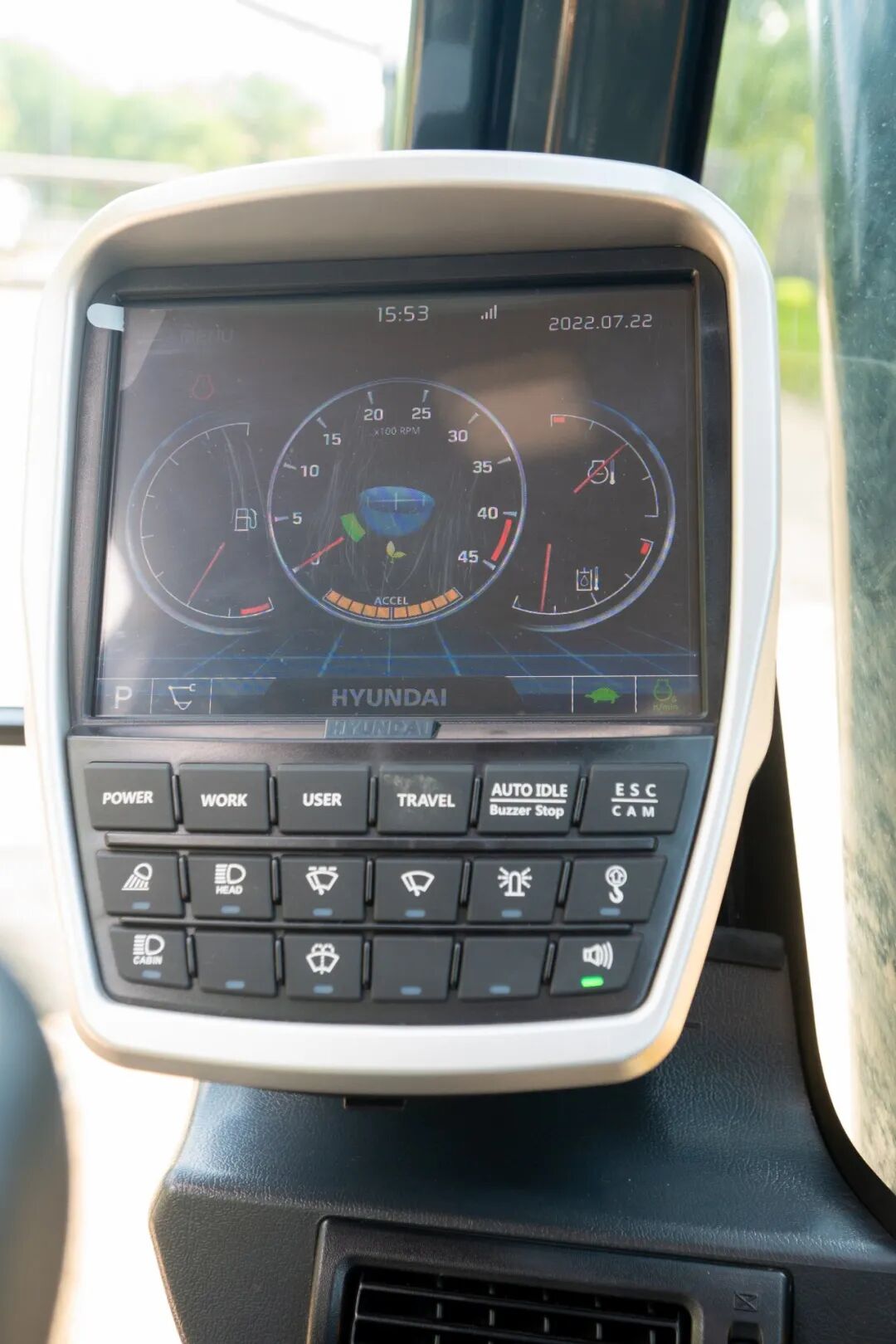

Multi-function LCD monitor

The standard multi-function LCD monitor puts key parameters — mode, consumption and machine status — at a glance, keeping the operator informed and the machine in its economic sweet spot.

Safety and Maintenance: A Double Upgrade

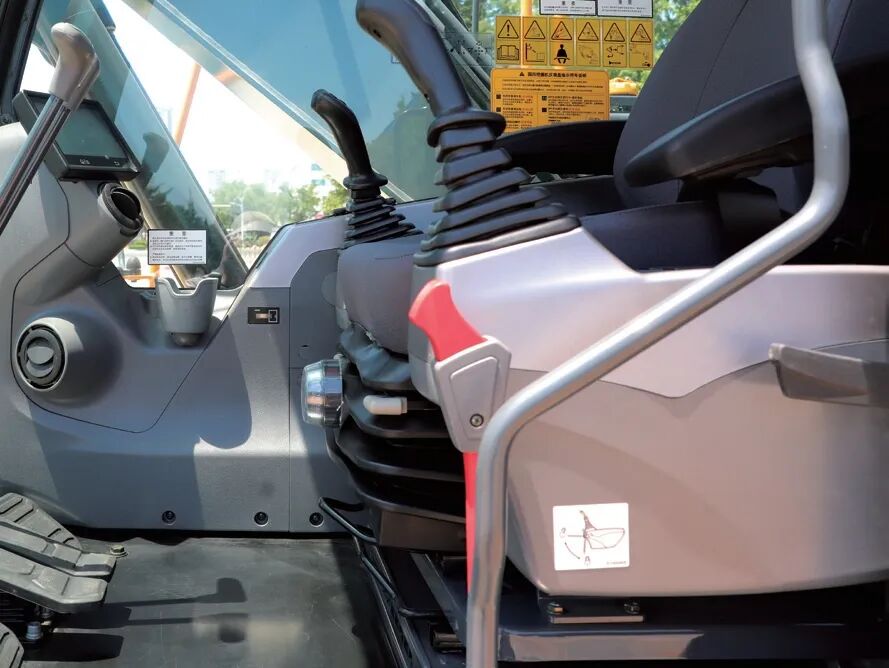

Auto safety lock and one-key emergency stop

The automatic safety lock prevents unintended movement from accidental lever contact, and the one-key emergency stop switch lets power be cut instantly — every detail designed around your operators' safety.

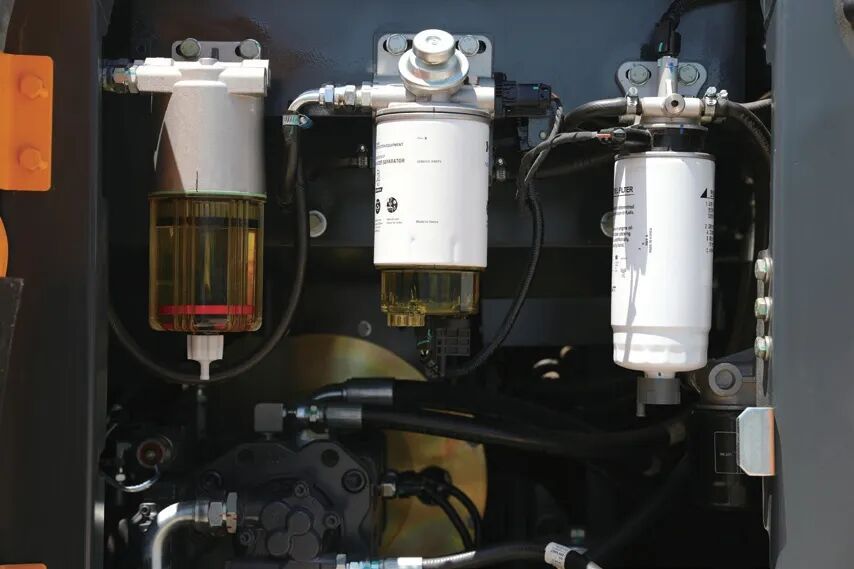

Centralized filters, within-reach service points

Filter elements are centrally arranged and daily maintenance points are within reach, further shortening service time — a dual guarantee of operating safety and maintenance efficiency that keeps the machine earning.

Best-Fit Applications for the HX130

• Earth and stone works: Reinforced structures and ample power reserve handle demanding digging and loading.

• Municipal construction: Compact 13-ton footprint with precise control for city jobsites.

• Farmland renovation: Smooth metering and coordinated actions suit grading and ditching work.

• Truck loading: Optimized swing performance delivers fast, stable loading cycles.

• Breaking duties: Dedicated breaking mode in EPOS keeps hammer work productive and efficient.

The Tianheng Advantage: Parts, Service and Export Expertise

Purchasing the machine is only half the equation; aftermarket support dictates your daily profitability. As a Diamond-level Dealer with 25 years of specialized Hyundai expertise, Tianheng Construction Machinery eliminates the typical pain points of equipment ownership for export customers.

Strategic parts availability

Downtime is the enemy. Tianheng maintains a $5 million USD inventory of genuine Hyundai components, with 50 strategically located direct-operated branches guaranteeing swift, expedited distribution. Whether you need filters, hydraulic components or undercarriage parts for your HX130, the logistics network gets your machine back to work in record time.

Export-ready delivery

Every exported unit undergoes pre-delivery inspection and export-standard packaging. Our team handles configuration confirmation (bucket and attachment list, emission package for your market), FOB/CIF quotation and shipping documentation for your destination port.

Conclusion and Next Steps

One machine in hand, confidence all year: the HX130 is not just an excavator but a wealth-creating tool for your earthworks — urea-free China Stage IV power, intelligent EPOS and SPC fuel management, imported hydraulics, reinforced structures and a comfortable intelligent cab. For broader budget planning, see our complete excavator pricing guide.

Ready to price the HX130 for your market? Send us your target configuration and destination port — our team replies with the specification sheet, quotation and delivery time.

Get Your HX130 Quote Today

FAQ

What class of excavator is the Hyundai HX130?

The HX130 is a 13-ton class compact crawler excavator with a 13,055 kg operating weight, designed for earth and stone works, municipal construction, farmland renovation and truck loading.

What engine does the HX130 use?

A Hyundai D603 China Stage IV diesel engine rated at 75 kW at 2,400 rpm, with ample power reserve for heavy-load work.

Does the HX130 require DEF (urea)?

No. Its DOC+DPF aftertreatment works without an SCR urea system, so there is no urea tank, no urea purchase and no urea-related maintenance — fundamentally lower operating cost.

What power modes are available?

The EPOS system provides four modes — economy, standard, power and breaking — with one-key switching to match the duty cycle.

How does SPC smart power control save fuel?

It senses working load in real time and automatically matches engine speed and pump flow: light load drops rpm to save fuel, heavy load boosts output instantly. Combined with EPOS, customers see noticeably lower refueling frequency — about one extra working hour per tank.

What hydraulic components does it use?

An imported-brand main pump with a maximum flow of 2 × 114 L/min, paired with a market-proven main valve offering stable performance and a low failure rate.

What are the boom and arm sizes?

The boom is 4.6 m and the arm 2.2 m, FEA-optimized with thickened key plates and reinforced welds for long-term durability.

Which safety and maintenance features are included?

An automatic safety lock, one-key emergency stop switch, centralized filter elements and within-reach daily service points — cutting both risk and service time.

Where can I buy the HX130 and get parts and service?

Tianheng Construction Machinery is an authorized Hyundai dealer supplying export markets, backed by a $5 million genuine parts inventory and 50 direct-operated branches. Contact us for quotation, shipping and after-sales arrangements.
