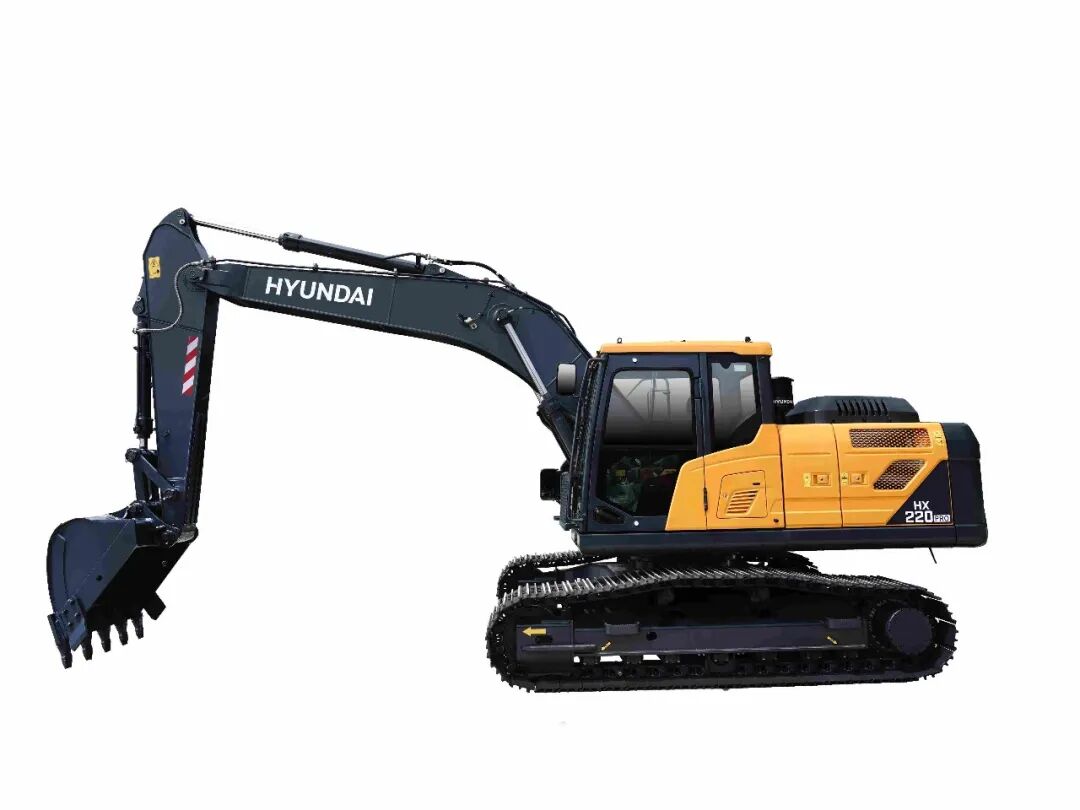

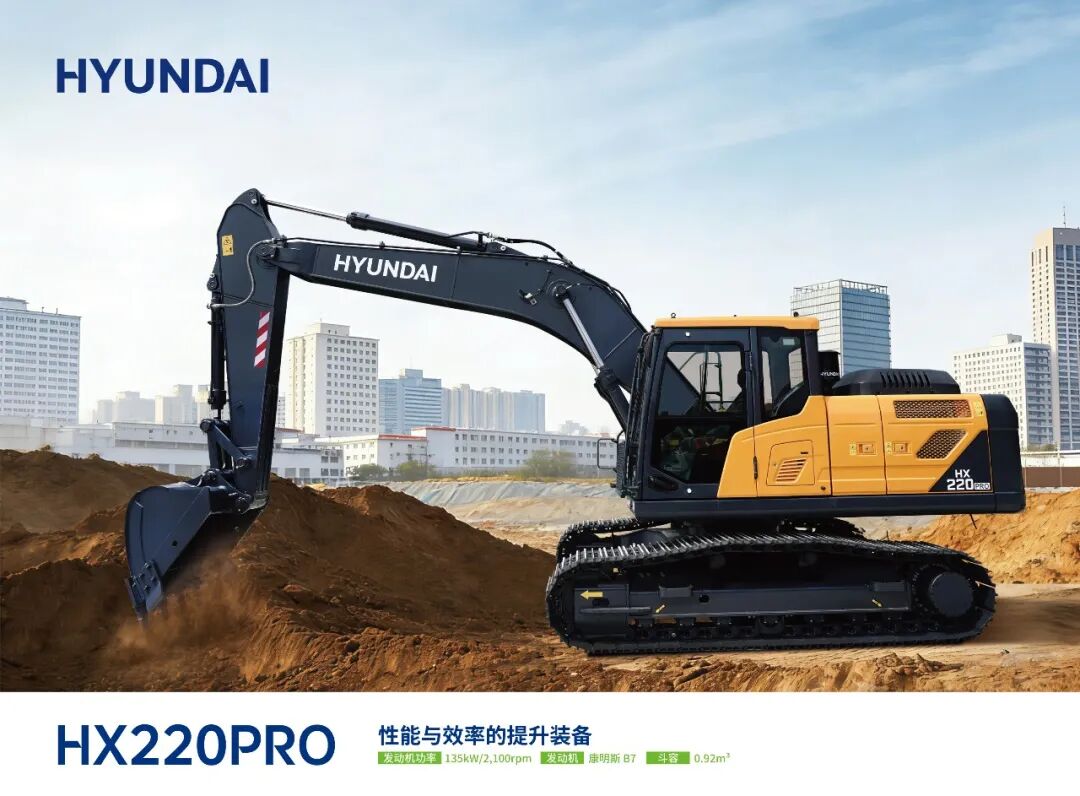

The Hyundai HX220PRO is a 20-ton class crawler excavator built to China Stage IV emissions standards, combining strong power, low fuel consumption and proven durability. It is the high cost-performance choice for earthmoving, site grading and foundation construction projects.

With a Cummins B7 China Stage IV engine (135 kW @ 2,100 rpm), the new EPIC intelligent hydraulic system that cuts combined fuel consumption by up to 17%, reinforced structures for heavy-duty impact resistance and an upgraded low-fatigue cab, the HX220PRO is designed to lower your cost per hour and raise project profitability. This guide covers its five core advantages, plus the export and after-sales support available through Tianheng Construction Machinery.

Key Takeaways: The HX220PRO at a Glance

• China Stage IV Cummins Power: Cummins B7 engine rated at 135 kW @ 2,100 rpm on the proven B-series platform; EGR-free design avoids power loss and simplifies maintenance.

• DOC+DPF+SCR Aftertreatment: Meets China Stage IV non-road emission requirements while extending service intervals and reducing operating cost.

• EPIC Intelligent Hydraulics: Electronic main-pump independent control cuts daily fuel use by 5–10% and combined consumption by up to 17% versus the previous generation.

• Proven Hydraulic Components: Imported electronically controlled main pumps (max flow 2 × 234 lpm) paired with Hyundai self-developed main valve and swing motor.

• Reinforced Structure: High-strength cast-steel boom and arm parts, doubled front-end protection, strengthened arm end and standard under-guard for heavy-load impact resistance.

• Stable Cooling: Optimized radiator assembly with larger heat-exchange area and an electronic temperature-controlled fan for continuous work in high ambient heat.

• Upgraded Cab: 13% more operating space, suspension premium seat, 8-inch smart touchscreen, auto safety lock and under-seat one-key external emergency stop.

• Tianheng Support: Backed by a $5 million genuine parts inventory and 50 strategically located global branches.

Quick Specifications: Hyundai HX220PRO

Powertrain: China Stage IV Cummins Power, Lower Operating Cost

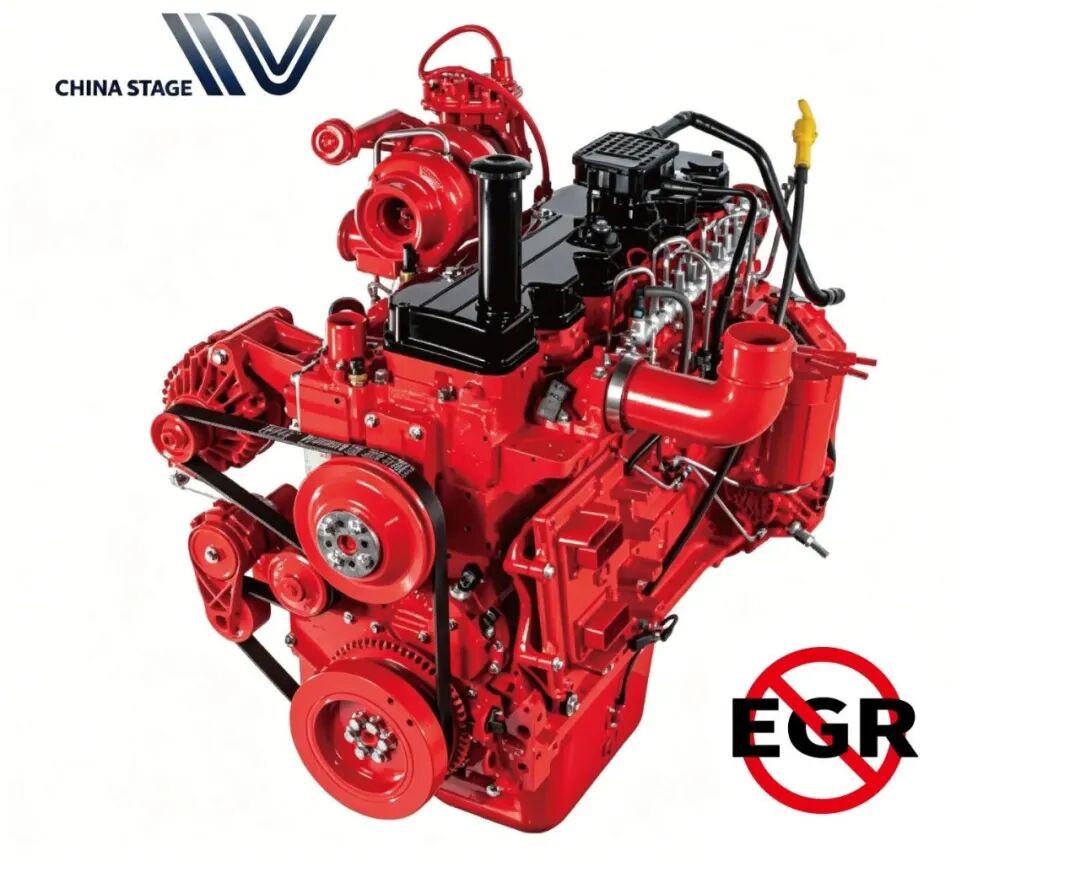

Cummins B7: proven B-series platform, 135 kW

At the heart of the Hyundai HX220PRO lies the Cummins B7 China Stage IV engine, rated at 135 kW at 2,100 rpm. Built on the Cummins B-series platform, it offers ample power reserve and convenient maintenance — a rational, cost-effective choice for 20-ton class earthmoving work.

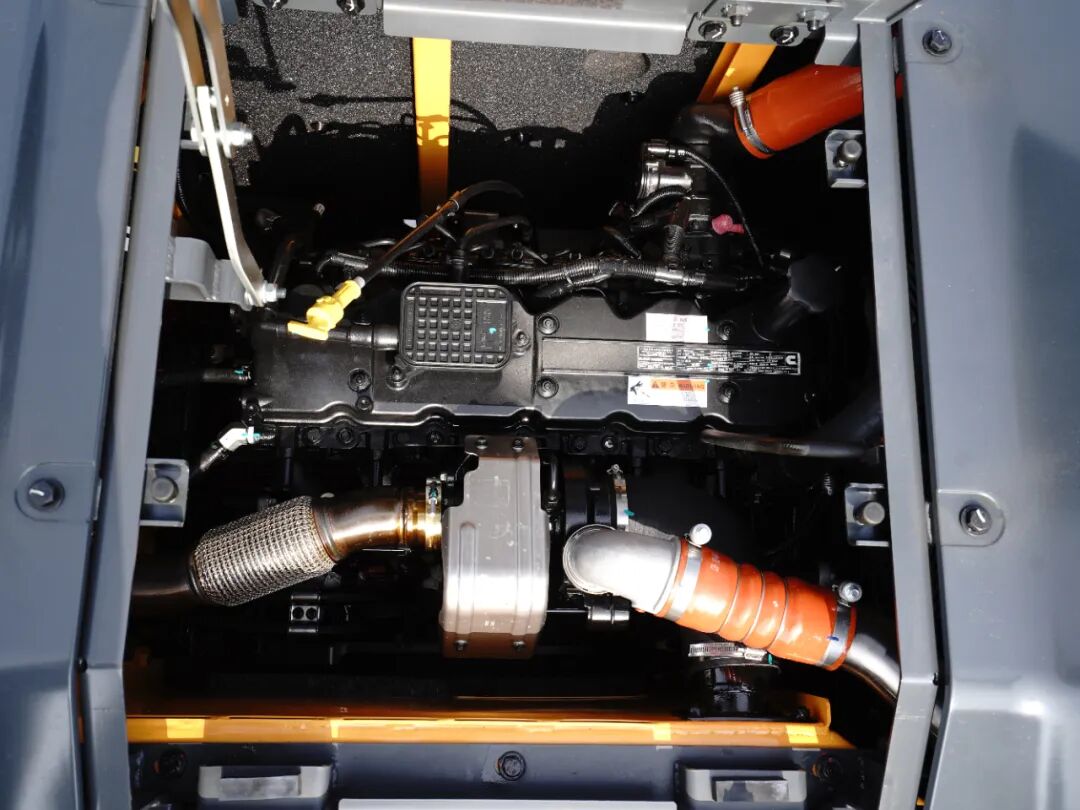

EGR-free design with DOC+DPF+SCR aftertreatment

The EGR structure is eliminated, avoiding power loss and soot-related wear. DOC+DPF+SCR aftertreatment meets China Stage IV non-road emission requirements while extending service intervals and reducing customer operating cost over the machine's life.

Fluids that protect the aftertreatment

The machine requires low-sulfur diesel, CK-4 low-ash oil and genuine vehicle-grade DEF (urea). Using the specified fluids significantly reduces aftertreatment failure risk — a simple discipline that keeps uptime high. Export-market configurations may differ, so confirm the compliance package for your destination country with our sales team.

EPIC Intelligent Hydraulics: High Efficiency with Real Fuel Savings

EPIC electronic main-pump independent control

The hydraulic system adopts the new EPIC electronic main-pump independent control system, optimizing the control logic of the two main pumps separately. For frequently used actions such as arm lowering and grading, main-pump flow is optimized and valve spools are tuned to reduce system pressure loss.

Up to 17% lower fuel consumption

The result is a 5–10% reduction in daily fuel use, with whole-machine combined fuel consumption down by up to 17% versus the previous generation. Operation response improves at the same time, reducing swing speed drop during working cycles.

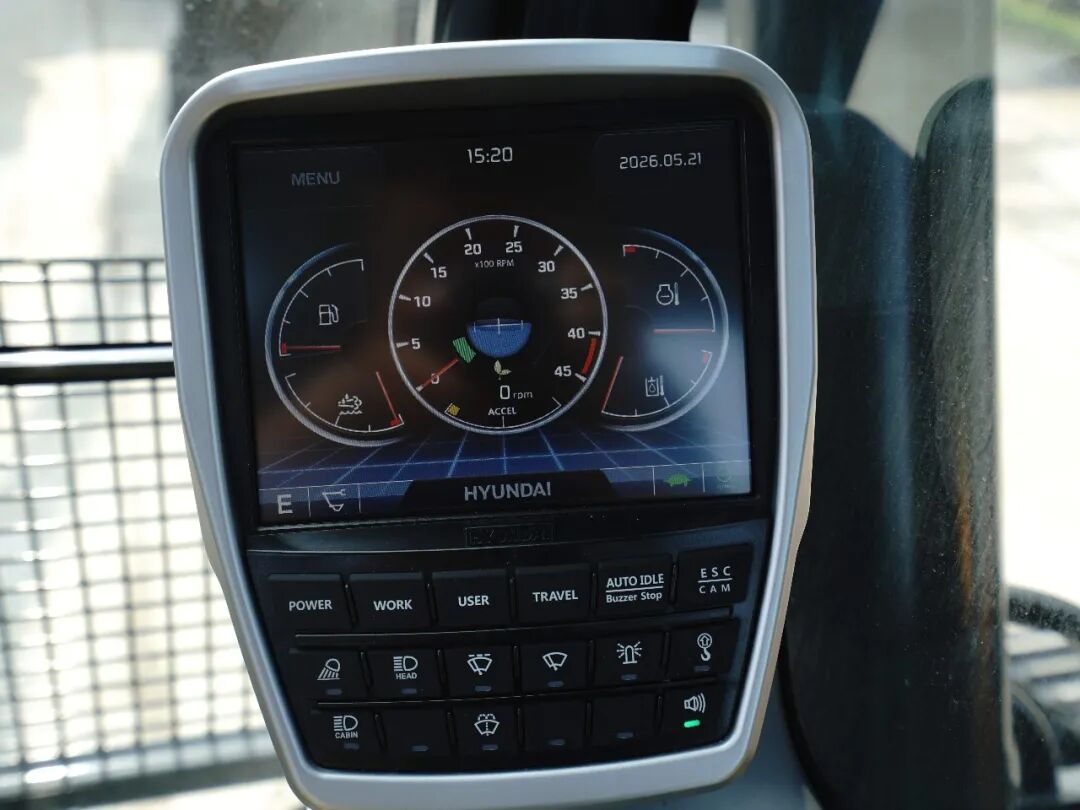

ECO Guidance: coaching operators toward economy

The ECO Guidance intelligent system works with instrument-panel monitoring, using color icons to flag working conditions and coach operators away from low-efficiency habits such as rapid acceleration and overflow. Daily and hourly fuel consumption are displayed in real time, helping crews build economical operating habits shift after shift.

Reinforced Structure and Cooling for Heavy-Duty Reliability

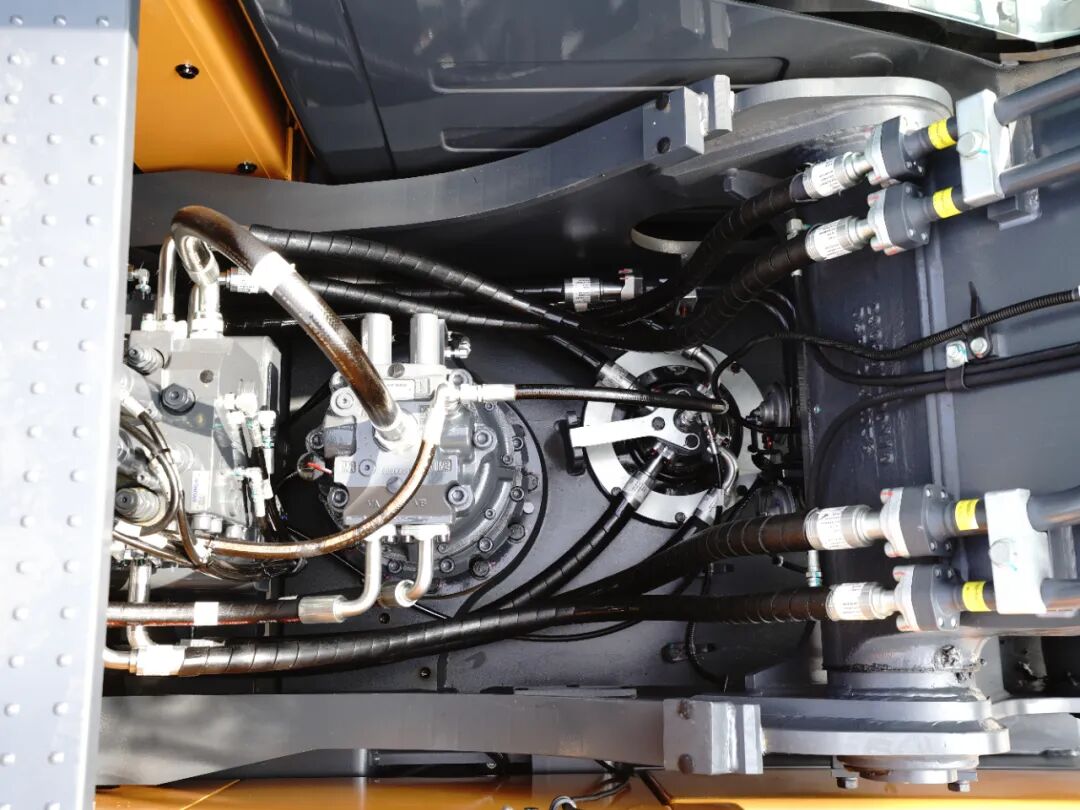

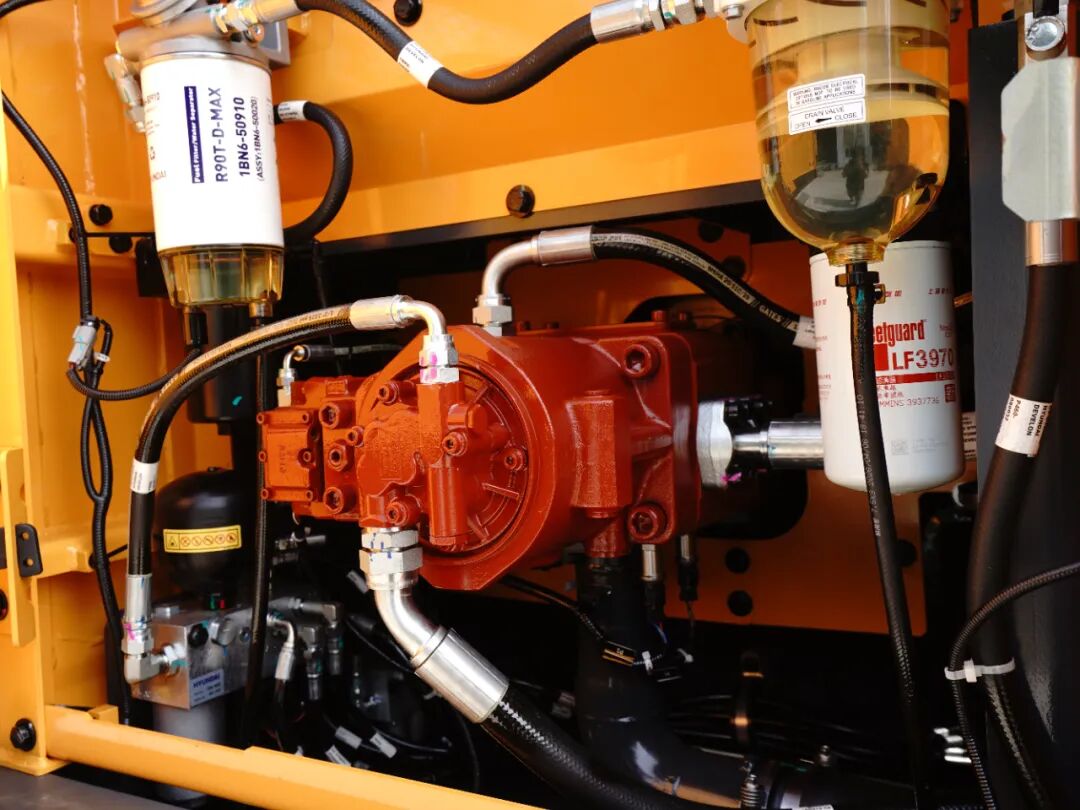

Imported main pumps with self-developed main valve and swing motor

Whole-machine durability is comprehensively upgraded. Imported electronically controlled main pumps deliver a maximum flow of 2 × 234 lpm, paired with Hyundai's self-developed main valve and swing motor — a combination verified across heavy duty cycles for fast working speeds and stable output.

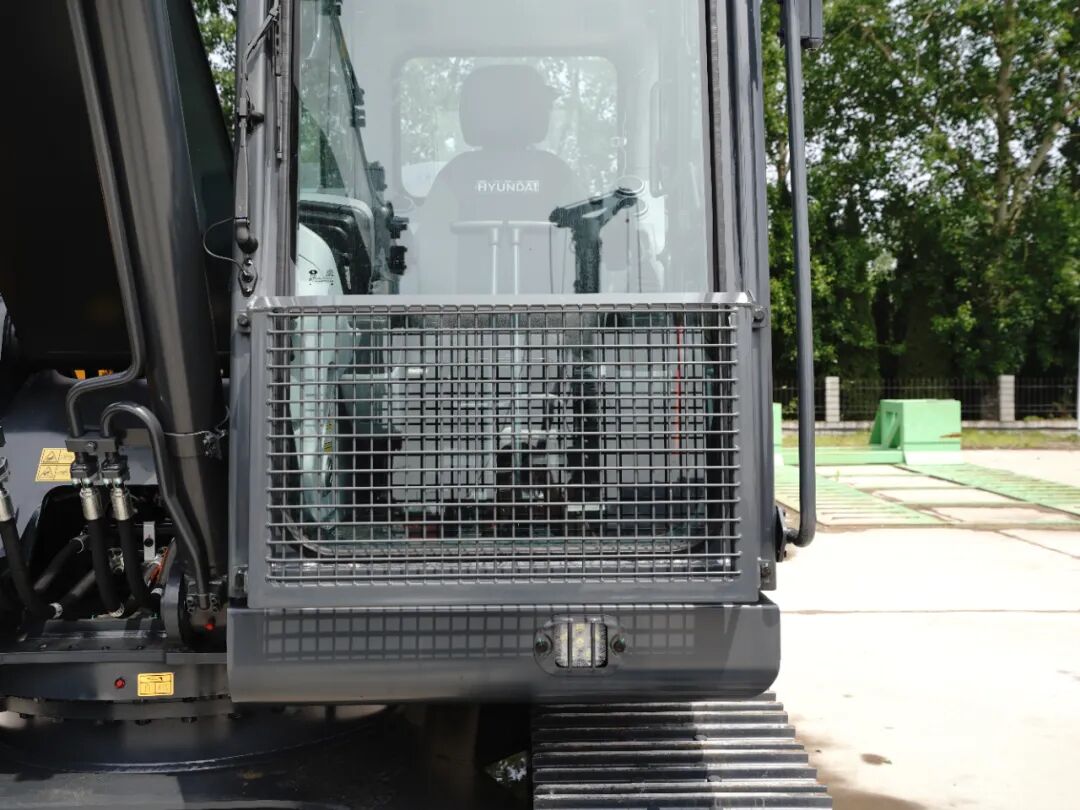

Reinforced boom, arm and standard under-guard

The heavy-duty boom and arm use high-strength cast-steel components with doubled front-end protection, and the arm end is further reinforced. A under-guard is fitted as standard, giving stronger impact resistance for overseas heavy-load conditions such as quarry-adjacent and demolition-adjacent work.

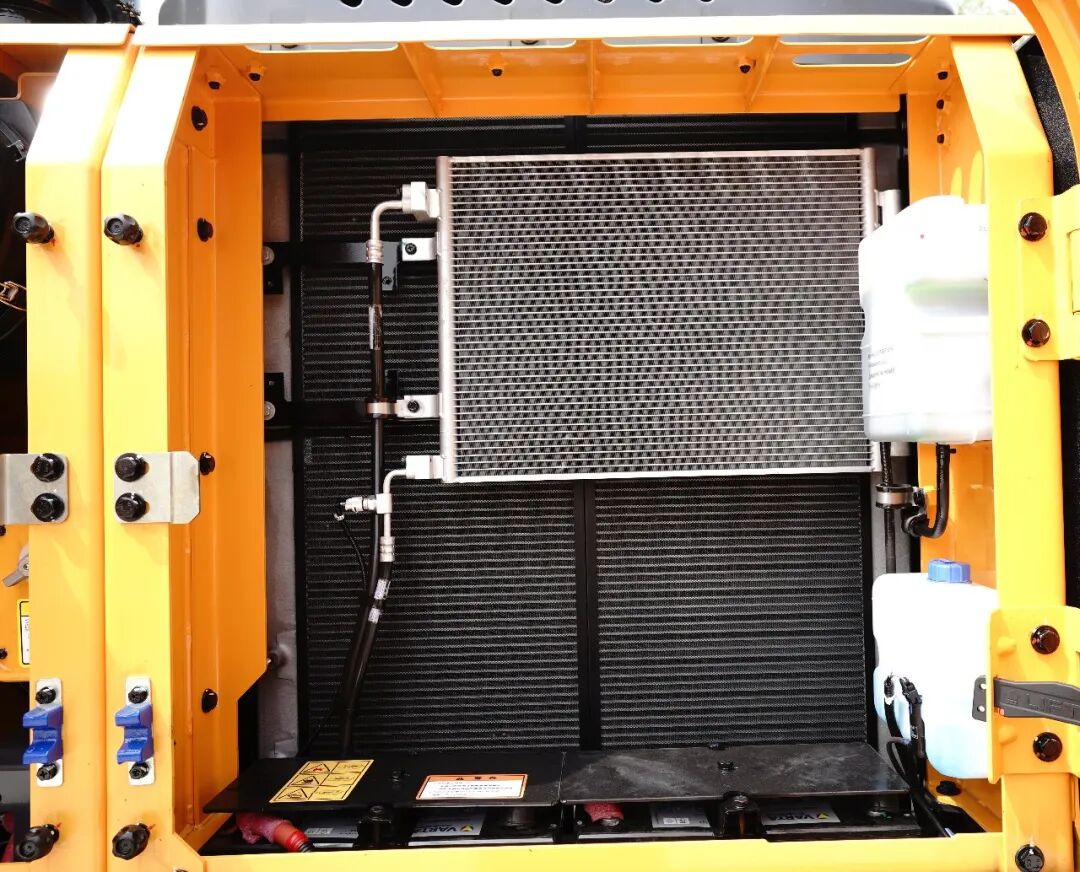

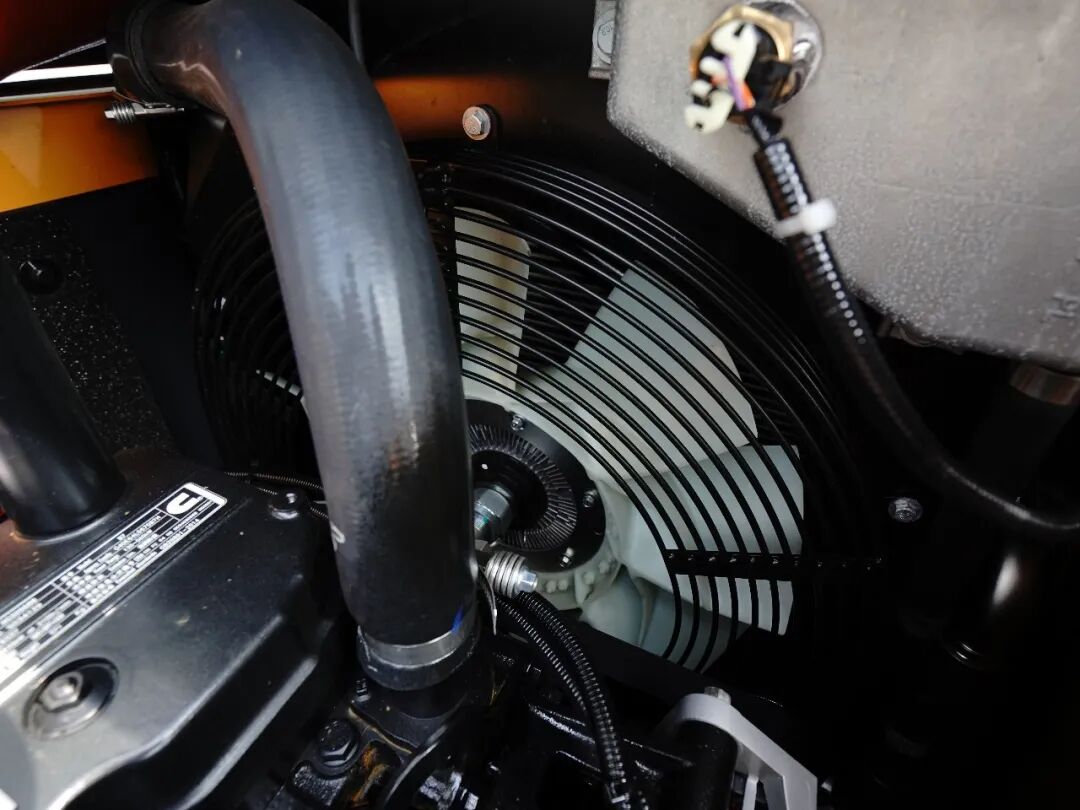

Optimized cooling package with temperature-controlled fan

The radiator assembly structure is optimized with a larger heat-exchange contact area, and the electronic temperature-controlled fan automatically adjusts its working state according to temperature — keeping heat dissipation stable during continuous operation in high-ambient environments.

Comfortable, Safe Cab: Human-Machine Experience Upgrade

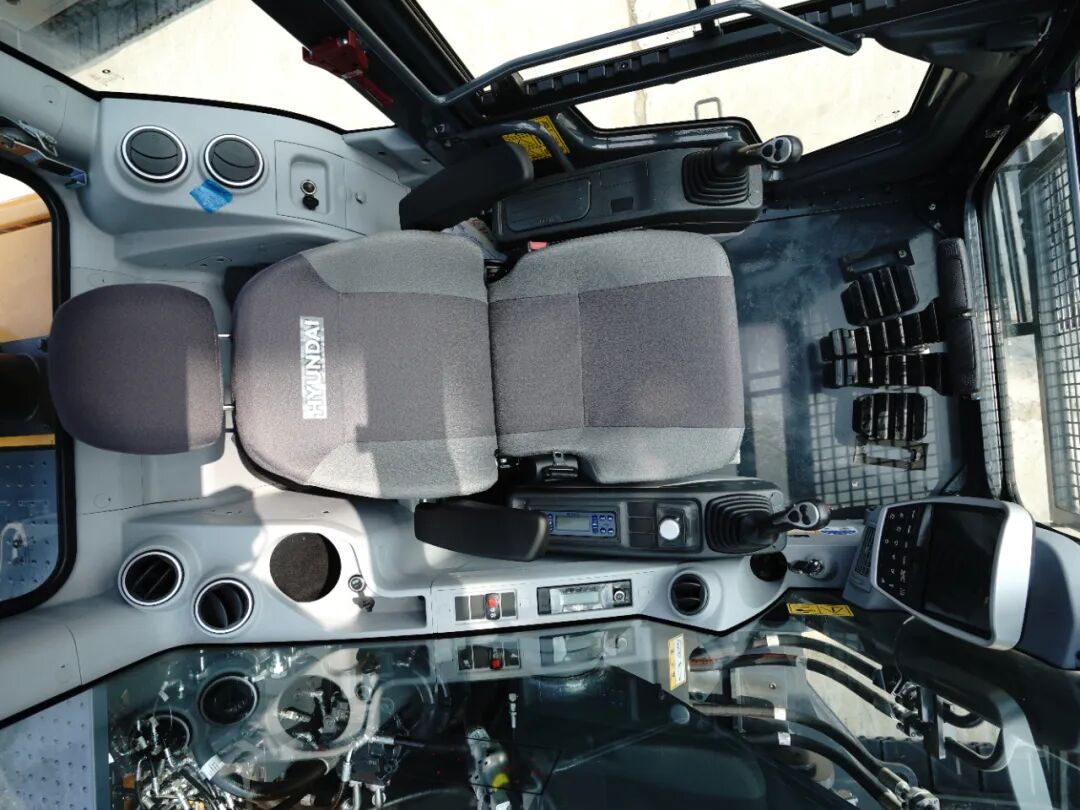

13% more space, suspension seat and 8-inch touchscreen

The cab's ergonomics are fully optimized: internal operating space is up 13% over the previous generation, with a suspension premium seat and an 8-inch smart touchscreen. Whole-machine noise reduction keeps long shifts less tiring.

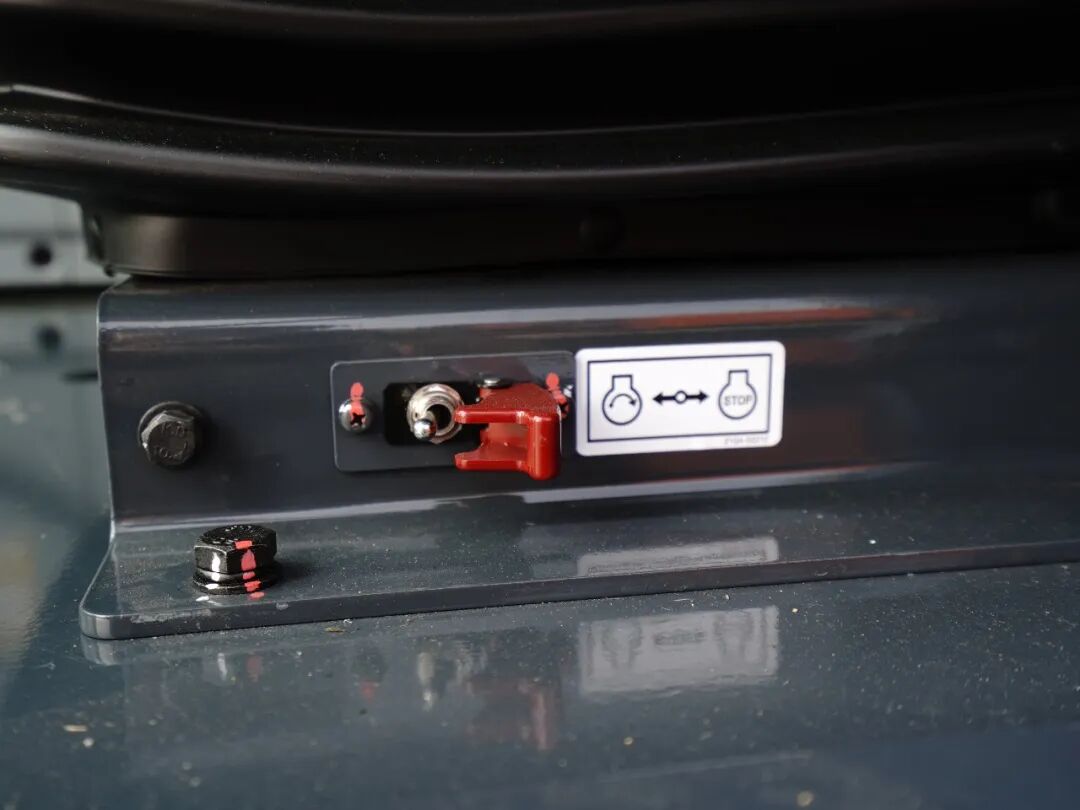

Auto safety lock and external emergency stop

A newly added automatic safety lock prevents误 accidental machine movement caused by unintended lever contact, while a one-key emergency stop switch under the seat allows power to be cut from outside the cab — protecting both personnel and machine.

Centralized filters simplify maintenance

Filter elements are centrally arranged for fast service. Three-stage fuel filtration and a large-capacity air pre-filter simplify maintenance steps, keep engine intake clean and extend the life of core components.

Best-Fit Applications for the HX220PRO

• Earthwork excavation: The standard 0.92 m³ bucket and 6,447 mm max digging depth cover general excavation and mass earthmoving.

• Site grading: Optimized valve spools and smooth control make grading and leveling work precise and fast.

• Foundation construction: Stable output and reinforced structures suit foundation, trenching and utility projects.

• General contracting: Power, fuel consumption, durability and comfort are balanced across the vast majority of conventional working conditions.

• Cost-focused fleets: Up to 17% fuel savings and simplified maintenance directly reduce cost per hour and raise project returns.

The Tianheng Advantage: Parts, Service and Export Expertise

Purchasing the machine is only half the equation; aftermarket support dictates your daily profitability. As a Diamond-level Dealer with 25 years of specialized Hyundai expertise, Tianheng Construction Machinery eliminates the typical pain points of equipment ownership for export customers.

Strategic parts availability

Downtime is the enemy. Tianheng maintains a $5 million USD inventory of genuine Hyundai components, with 50 strategically located direct-operated branches guaranteeing swift, expedited distribution. Whether you need filters, hydraulic components or undercarriage parts for your HX220PRO, the logistics network gets your machine back to work in record time.

Export-ready delivery

Every exported unit undergoes pre-delivery inspection and export-standard packaging. Our team handles configuration confirmation (bucket and attachment list, emission package for your market), FOB/CIF quotation and shipping documentation for your destination port.

Conclusion and Next Steps

Choose the Hyundai HX220PRO and you choose efficient fuel savings and steady earnings: China Stage IV Cummins power without EGR complexity, EPIC hydraulics that cut combined consumption by up to 17%, reinforced structures for heavy loads, and a quieter, roomier cab that keeps operators productive. For broader budget planning, see our complete excavator pricing guide.

Ready to price the HX220PRO for your market? Send us your target configuration and destination port — our team replies with the specification sheet, quotation and delivery time.

Get Your HX220PRO Quote Today

FAQ

What class of excavator is the Hyundai HX220PRO?

The HX220PRO is a 20-ton class crawler excavator positioned for earthmoving, site grading and foundation construction, offering a high cost-performance balance of power, fuel economy, durability and comfort.

What engine does the HX220PRO use?

A Cummins B7 China Stage IV diesel engine rated at 135 kW at 2,100 rpm, built on the proven Cummins B-series platform with ample power reserve and convenient maintenance.

Does the HX220PRO require DEF (urea)?

Yes. Its DOC+DPF+SCR aftertreatment requires genuine vehicle-grade DEF (urea), together with low-sulfur diesel and CK-4 low-ash oil. Using the specified fluids reduces aftertreatment failure risk and extends service intervals.

How much fuel can the HX220PRO save?

The EPIC electronic main-pump independent control system reduces daily fuel use by 5–10%, and whole-machine combined fuel consumption is up to 17% lower than the previous generation. ECO Guidance further helps operators avoid wasteful habits.

What are the bucket and digging specifications?

The standard bucket capacity is 0.92 m³ with a maximum digging depth of 6,447 mm — matched to the vast majority of conventional earthmoving and foundation working conditions.

Which hydraulic components does it use?

Imported electronically controlled main pumps with a maximum flow of 2 × 234 lpm, paired with Hyundai's self-developed main valve and swing motor, verified across heavy duty cycles for fast speed and stable output.

How durable is the structure?

The heavy-duty boom and arm use high-strength cast-steel components with doubled front-end protection, a reinforced arm end and a standard under-guard — delivering stronger impact resistance in heavy-load conditions.

What cab features improve comfort and safety?

13% more operating space, a suspension premium seat, an 8-inch smart touchscreen, whole-machine noise reduction, an automatic safety lock against unintended lever contact, and an under-seat one-key emergency stop accessible from outside the cab.

Where can I buy the HX220PRO and get parts and service?

Tianheng Construction Machinery is an authorized Hyundai dealer supplying export markets, backed by a $5 million genuine parts inventory and 50 direct-operated branches. Contact us for quotation, shipping and after-sales arrangements.
